Question
Find $B$ at the center of the 4.0 -cm-radius semicircle in Fig. $61 .$ The straight wires extend a great distance outward to the left and carry a current $I=6.0 A .$
Step 1
All three segments are creating the magnetic field in the same direction. Show more…
Show all steps
Your feedback will help us improve your experience
Vishal Gupta and 53 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

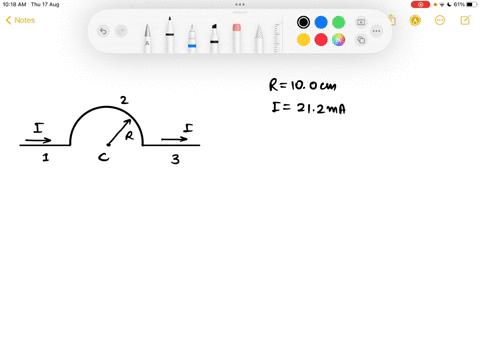

In the figure, a wire forms a semicircle of radius R = 10.0 cm and two (radial) straight segments each of length L = 15.0 cm. The wire carries a current i = 21.2 mA. What are the (a) magnitude and (b) direction (into or out of the page) of the net magnetic field at the semicircle's center of curvature C? (a) Number Units (b)

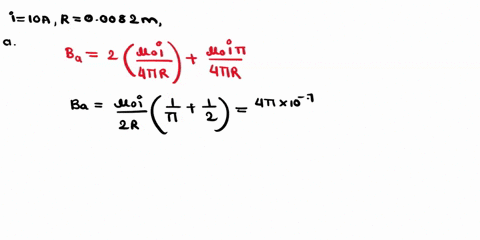

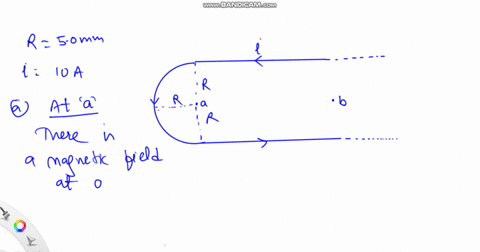

In Fig. $29-37$, a current $i=10 \mathrm{~A}$ is set up in a long hairpin conductor formed by bending a wire into a semicircle of radius $R=5.0 \mathrm{~mm}$. Point $b$ is midway between the straight sections and so distant from the semicircle that each straight section can be approximated as being an infinite wire. What are the (a) magnitude and (b) direction (into or out of the page) of $\vec{B}$ at $a$ and the (c) magnitude and (d) direction of $\vec{B}$ at $b ?$
In Fig. $29-37,$ a current $i=10 \mathrm{~A}$ is set up in a long hairpin conductor formed by bending a wire into a semicircle of radius $R=5.0 \mathrm{~mm}$. Point $b$ is midway between the straight sections and so distant from the semicircle that each straight section can be approximated as being an infinite wire. What are the (a) magnitude and (b) direction (into or out of the page) of $\vec{B}$ at $a$ and the (c) magnitude and (d) direction of $\vec{B}$ at $b ?$
