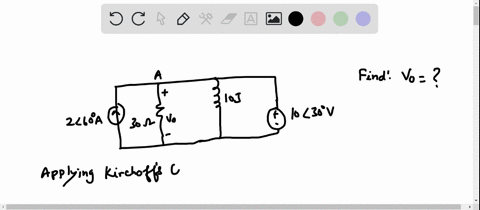

Find 𝐕o in the network in Fig. P 8.97.

Name: Problem 97, Chapter 8: Basic Engineering Circuit Analysis
Uploaded: 2021-06-20T12:39:44-08:00
Duration: 2 min 59 s
Channel: Khoobchandra Agrawal
Description: Find 𝐕o in the network in Fig. P 8.97.

Key Concepts

Kirchhoff’s Laws

These fundamental principles—Kirchhoff’s Current Law (KCL) and Kirchhoff’s Voltage Law (KVL)—form the basis for circuit analysis. KCL states that the algebraic sum of currents entering and leaving a node must be zero, while KVL asserts that the sum of voltage drops and rises around any closed loop in a circuit is zero. They are used to set up the equations that govern the behavior of electrical networks and are essential for determining unknown currents and voltages.

Node-Voltage Analysis

Node-voltage analysis is a systematic method used to determine the voltage at various points (nodes) within an electrical circuit, relative to a common reference point (typically ground). This technique involves applying KCL at the nodes and expressing the currents in terms of the node voltages. It simplifies complex circuits into a series of solvable equations, making it particularly useful for finding output voltages like Vo.

Thevenin Equivalent Circuits

Thevenin’s theorem is a circuit simplification tool that allows a complex network to be reduced to a single voltage source in series with a resistor. By determining the Thevenin equivalent voltage and resistance at the location of interest, it becomes easier to analyze how a load will interact with the rest of the circuit. This is especially useful when finding output voltages, as it can replace a complicated section of the circuit with a simpler equivalent that makes the analysis more straightforward.
