Find the bearing reactions and the maximum bending stress...

Name: Problem 18, Chapter 9: Mechanical Vibrations in SI Units
Uploaded: 2026-01-29T00:02:31-08:00
Duration: 2 min 19 s
Channel: James Kiss

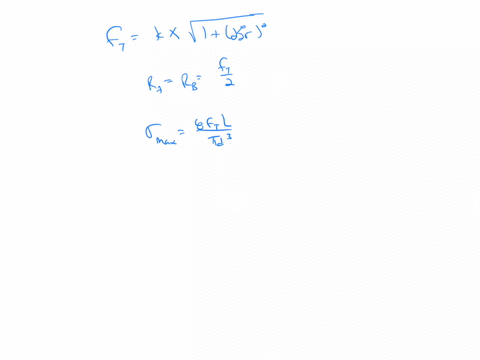

Description: Find the bearing reactions and the maximum bending stress induced in the shaft at (a) operating speed, (b) critical speed, and (c) 1.5 times the critical speed for the shaft-rotor system described in Problem 9.17 .

Find the bearing reactions and the maximum bending stress induced in the shaft at (a) operating speed, (b) critical speed, and (c) 1.5 times the critical speed for the shaft-rotor system described in Problem 9.17 .

Key Concepts

Rotor Dynamics

Rotor dynamics is the study of the behavior of rotating shafts and attached masses under various forces and moments. This field encompasses the analysis of vibration, balance, critical speeds, and stability. Understanding rotor dynamics is crucial for designing systems that remain robust and reliable across different operating conditions, including at speeds near and above the critical vibration threshold.

Operating Speed

Operating speed is the normal rotational speed at which the shaft-rotor system functions during regular service. It is important to analyze how the shaft behaves at this speed in terms of bearing reactions and bending stress because it represents the typical load conditions. The design must ensure that the shaft can safely withstand the stresses encountered during normal operation.

Bearing Reactions

Bearing reactions refer to the support forces provided by the bearings that hold the shaft in place. They are critical for maintaining the shaft's equilibrium and stability under various loading conditions, especially when dynamic forces due to rotation and imbalances are present. Analyzing bearing reactions helps in ensuring that the supports can handle the loads during operation, critical, and higher-than-critical speeds.

Maximum Bending Stress

Maximum bending stress is the highest stress experienced by the material of the shaft due to bending moments. It is key to determining the strength and fatigue life of the shaft. This stress is typically calculated at a critical section where the bending moment is a maximum, and it informs the design and material selection to prevent failure under operational and extreme conditions.

Critical Speed

Critical speed is the rotational speed at which the shaft's natural frequency matches the excitation frequency, leading to resonance. At this speed, even relatively small disturbances can result in large amplitude vibrations, significantly increasing bending stresses. Understanding the critical speed is essential for avoiding resonance conditions that can cause damage or failure in rotating machinery.
