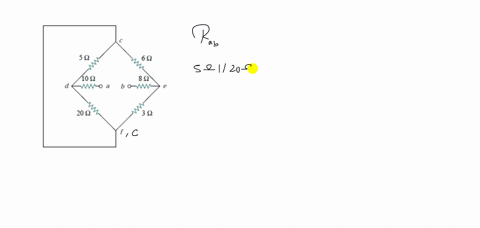

Find the equivalent resistance across A and B in the following circuit. (GRAPH CANT COPY)

Name: Problem 40, Chapter 7: Physics (Class 10)
Uploaded: 2020-07-26T23:24:17-08:00
Duration: 3 min 14 s
Channel: Luis Rios
Description: Find the equivalent resistance across A and B in the following circuit. (GRAPH CANT COPY)

step 1 So here we have three circuits and our goal is to find the equivalent resistance if it exists fo

Find the equivalent resistance across A and B in the...

Key Concepts

Equivalent Resistance

Equivalent resistance is the single resistance that could replace a complex network of resistors without changing the overall current or voltage characteristics of the circuit. It is calculated by reducing a circuit through combining resistors in series and parallel, and sometimes by applying more advanced techniques when the network is complex.

Series Connection

Resistors in series are connected end-to-end such that the same current flows through each resistor. The equivalent resistance of resistors connected in series is the sum of their individual resistances, which simplifies analysis by reducing multiple elements to one effective resistor.

Parallel Connection

Resistors in parallel are connected across the same two nodes, meaning each resistor has the same voltage across it. The equivalent resistance of resistors in parallel is calculated using the reciprocal formula: the reciprocal of the total equivalent resistance is the sum of the reciprocals of the individual resistances, allowing the network to be simplified into a single resistor.

Delta-Wye (?-Y) Transformation

The Delta-Wye transformation is an advanced circuit analysis technique used to simplify resistor networks that are neither purely series nor purely parallel. This method converts a triangle-shaped configuration (delta) of resistors into an equivalent star-shaped (wye) configuration, which can then be more easily reduced using series and parallel combinations.

Circuit Analysis and Reduction Techniques

Circuit reduction techniques involve systematically applying rules such as series and parallel combinations and transformation methods to simplify complex resistor networks. These techniques are essential when analyzing circuits whose geometry does not immediately lend itself to simple aggregation of resistances, enabling the determination of overall characteristics like equivalent resistance.
