Find the five-number summary, and construct a boxplot for the data in the indicated problem. Com

Find the five-number summary, and construct a boxplot for...

Key Concepts

Five-Number Summary

The five-number summary is a set of basic descriptive statistics that provides a quick overview of the distribution of a data set. It includes the minimum, first quartile (Q1), median (Q2), third quartile (Q3), and maximum. This summary is useful for understanding the range and spread of the data and for detecting any potential outliers.

Boxplot

A boxplot, or box-and-whisker plot, is a graphical representation of the five-number summary. It displays the central 50% of the data within a box, with the median marked inside. The whiskers extend from the box to the minimum and maximum values, unless outliers are identified. Boxplots provide a visual method for comparing distributions and identifying skewness and outliers.

Distribution Shape

The shape of a distribution refers to the overall pattern or form of the data when plotted. Analyzing the five-number summary and the boxplot helps in understanding characteristics such as symmetry, skewness, and the presence of outliers. Observing how the median is positioned within the box and the lengths of the whiskers can indicate whether the distribution is skewed left, skewed right, or approximately symmetric.

Transcript

00:01 Today we're going to be talking about how to calculate a five number summary, how to draw a box plot, and how to see what the shape of distribution is of the graph.

00:13 And so today we're going to be focusing on miles per gallon.

00:18 I know as i have a car and miles per gallon is super important to understand the data.

00:23 You want to have the most miles per gallon possible.

00:26 And so we're going to take this set of data and we're going to create a box plot and calculate a five number summary.

00:32 In order to do that, you're going to take your graph and calculator, you're going to turn it on, and you're going to go into your stat button, which is right here.

00:46 And when you click stat and you click on this button that says edit, you want to look for the button that says edit, you want to put in your data.

00:54 Now, if there's already data in there, you're going to go to l1, you're going to hit clear and enter and vanish.

01:01 There is no more data there.

01:03 And so now you'll be able to put in your data for miles per gallon.

01:08 And so we're going to put in 30, 29, 30, 21, 18, 29, 29, 27, and 29.

01:24 You're going to continue, since it's all one variable, you're going to put all of this data in just the first list under l1.

01:32 And so we have 34, 30, 28, 30, 20, 32, 28, 32.

01:44 Third row, 34, 35, 26.

01:52 26 again, 31, 25, 35, 35, 32, and 25.

02:02 Fourth row is 19, 26.

02:06 19, 24, 22, 24, 19, 31, and 26.

02:16 34, 34, 32, 32, 34, 24, 25, 34, 34.

02:23 Again, 32, 29, and 25.

02:28 Next row is 31, 29, 30, 30, 30, 34, 34, 32.

02:38 29, 38, and 39.

02:43 And then finally you have 46, 31, 31, again, 30, 27, 29, 26, 29, and 24.

02:56 So that's a lot of data, but you're putting it all under the first list.

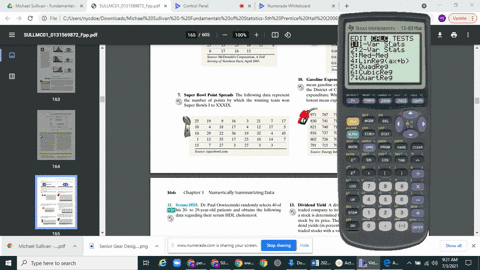

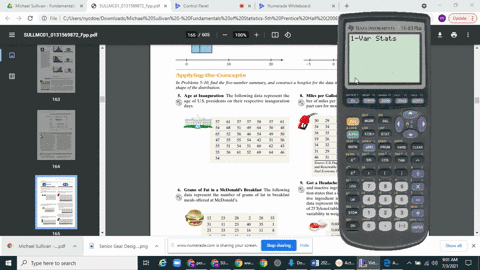

03:01 In order to calculate your five number summary, you're going to go to stat, you're going to go over to calc, and you're going to go to one var stat which means one variable statistics since this is just one variable.

03:15 Oh, sorry you're going to clear it out.

03:16 You're going to hit stat calc again, one variable statistics and you're going to put in l1.

03:23 Second l1.

03:24 If you see my other videos you know that this is for 83 plus.

03:28 If you have a 84 plus, you're going to just hit the button that says calculate and you're going to get a whole bunch of data here.

03:39 You're going to scroll down until you get to your five number summary.

03:43 Your five number summary consists of these last five numbers.

03:48 They consist of your minimum, which is 18.

03:52 So we're going to fill in 18 here...
