Find the impedance and current in each ac circuit. R=1.00 k Ω, L=10.0 mH, C=30.0 mF, f=10.0 kH

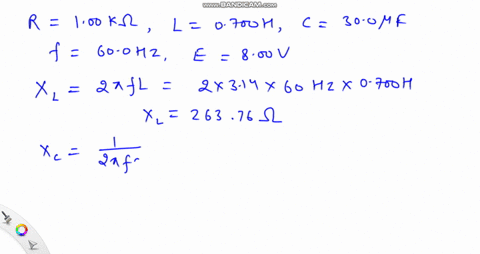

step 1 In the given problem there is a circuit which is having a resistance 1 .00 kilo -oom a self -ind

Find the impedance and current in each ac circuit. R=1.00...

Key Concepts

Capacitive Reactance

Capacitive reactance measures the opposition that a capacitor offers to the flow of AC, which is inversely proportional to both the frequency and the capacitance, expressed as XC = 1/(2?fC). It causes the current to lead the voltage in phase.

Inductive Reactance

Inductive reactance quantifies the opposition that an inductor presents to changes in current in an AC circuit. It is directly proportional to the frequency and the inductance, calculated as XL = 2?fL, and causes the current to lag behind the voltage.

Impedance

Impedance is the total opposition to alternating current in a circuit, combining both the resistance and net reactance (the difference between inductive and capacitive reactances) into a complex quantity. Its magnitude and phase are crucial for determining the current and voltage relationships in AC circuits.

AC Circuit Analysis

AC circuit analysis involves understanding how alternating current behaves in circuits that include resistors, inductors, and capacitors. This analysis requires considering the magnitude and phase of voltages and currents, and it often involves complex numbers to represent impedance.

Resistance

Resistance is the property of a component or circuit that opposes the flow of current, dissipating electrical energy as heat. It is independent of frequency and plays a straightforward role in determining current according to Ohm's law.

Ohm's Law in AC Circuits

In AC circuits, Ohm's law relates the voltage, current, and impedance of the circuit. It states that the current is equal to the voltage divided by the impedance (I = E/Z) when considering the magnitude, while also accounting for the phase difference introduced by the reactive components.
