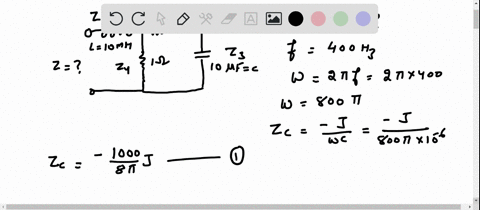

Find the impedance, 𝐙, shown in Fig. P 8.18 at a frequency...

Key Concepts

Series and Parallel Combination of Impedances

In the analysis of complex circuits, impedances in series are added directly, and impedances in parallel are combined using the reciprocal sum formula. This technique allows for the systematic breakdown and simplification of circuits to find a net impedance, facilitating the overall analysis of AC systems.

Angular Frequency and Reactance

Angular frequency, defined as ? = 2?f, is a key parameter for determining the reactance of inductors and capacitors in an AC circuit. Inductive reactance is given by ?L and capacitive reactance by 1/(?C), showing that the opposition offered by these elements depends on the frequency of the AC source.

AC Circuit Analysis

AC circuit analysis involves evaluating circuits that operate with alternating current. Unlike DC circuits, AC circuits are frequency-dependent, meaning that their behavior is influenced by the sinusoidal sources and the capacitor and inductor components, which introduce phase shifts and frequency-specific reactances.

Impedance

Impedance is a generalization of resistance for AC circuits, representing the total opposition to current flow when both resistive and reactive elements are present. It is expressed as a complex number that combines resistance (the real part) and reactance (the imaginary part), allowing analysis of both amplitude and phase relationships in the circuit.

Phasor Analysis

Phasor analysis is a technique used to simplify the study of AC circuits by converting sinusoidal voltages and currents into complex numbers (phasors). This approach transforms differential equations into algebraic equations, making it easier to combine impedances in series and parallel, and to analyze circuit behavior in the steady-state sinusoidal regime.
