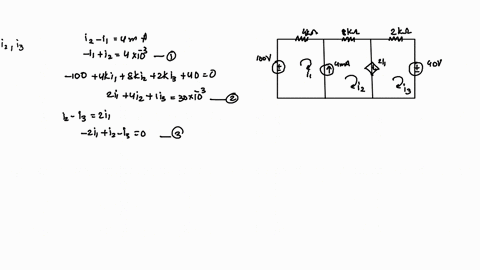

Find the mesh currents i1, i2, and i3 in the network of Fig. 3.90. Figure 3.90 For Prob. 3.48 .(

step 1 Find the mesh currents i1, i2, i3 in the network given by the figure. The mesh currents are give

Find the mesh currents i1, i2, and i3 in the network of Fig....

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Simultaneous Equations

In mesh analysis, the application of KVL to each mesh results in a system of simultaneous linear equations. Solving this system through methods such as substitution, elimination, or matrix techniques yields the values of the mesh currents, which provides deeper insights into the circuit’s behavior.

Kirchhoff’s Voltage Law (KVL)

Kirchhoff’s Voltage Law states that the algebraic sum of all voltages around any closed loop in a circuit is zero. This principle is fundamental in mesh analysis because it allows for the establishment of equations for each mesh by summing the products of the resistance and the mesh currents along with any voltage sources.

Mesh Analysis

Mesh analysis is a systematic method used in circuit theory for determining the currents circulating around the meshes (independent loops) of a circuit. It simplifies the analysis of complex circuits by assigning a mesh current to each loop and applying circuit laws to form equations that can be solved simultaneously.

Mesh Current

A mesh current is the hypothetical current that circulates around a fundamental loop in a circuit. It is introduced in mesh analysis to represent the current distribution and to simplify the process of writing circuit equations, combining the effects of various elements in the loop.
