Find the similarity parameters for the water hammer described in Example 4.10 .

Name: Problem 31, Chapter 8: Fluid mechanics
Uploaded: 2021-02-16T12:57:27-08:00
Duration: 5 min 6 s
Channel: Khoobchandra Agrawal
Description: Find the similarity parameters for the water hammer described in Example 4.10 .

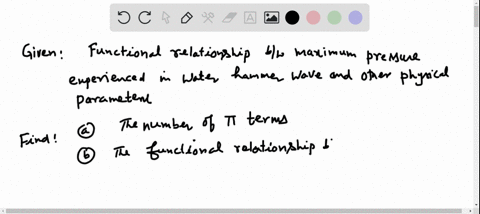

step 1 Hi everyone here it is given functional relationship between maximum pressure experienced in wat

Find the similarity parameters for the water hammer...

Key Concepts

Buckingham Pi Theorem

A fundamental tool in dimensional analysis, the Buckingham Pi Theorem helps reduce the number of variables in a physical problem by grouping them into dimensionless parameters. This technique allows engineers and scientists to identify the key scaling laws governing a phenomenon, making it easier to design experiments, scale models, and analyze complex systems like transient fluid flows and water hammer effects.

Water Hammer Phenomenon

Water hammer is a transient event characterized by a sudden pressure surge and resultant shock wave in a pipeline when the fluid in motion is forced to stop or change direction abruptly. Understanding the water hammer effect is crucial in fluid dynamics and hydraulic engineering because it can lead to significant structural stress and failure if not properly managed or accounted for in system design.

Dimensionless Parameters

Dimensionless or similarity parameters are ratios that combine the physical variables of a system into non-dimensional groups. These parameters allow for the characterization and comparison of the dynamic behavior of fluid systems under different scaling conditions. Their use in analyzing phenomena like the water hammer ensures that the modeled responses are representative of full-scale operations irrespective of the system's absolute size.

Characteristic Wave Speed

The characteristic wave speed is a critical factor in the analysis of water hammer, representing the speed at which pressure disturbances propagate through the fluid. It depends on both the fluid's compressibility and the elasticity of the pipe material. Incorporating the wave speed into dimensionless parameters is essential to capture the dynamic interaction between rapid transient events and the fluid-structure system.

Similarity and Scale Modeling in Transient Fluid Dynamics

Similarity in transient fluid dynamics implies that two systems with similar dimensionless parameters will behave in a comparable manner even if their physical sizes or operating conditions differ. This concept is leveraged in scale modeling and experimental studies, enabling predictions of full-scale water hammer effects based on tests conducted on scaled-down models using the relevant dimensionless groups.
