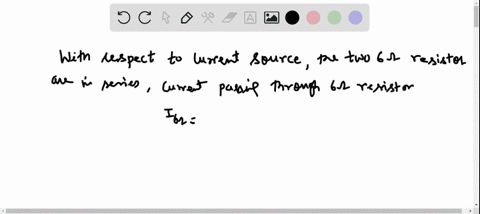

Find the Theivenin and Norton equivalent circuits for the circuit shown in Figure P 2.88

Name: Problem 88, Chapter 2: Electrical Engineering: Principles and Applications
Uploaded: 2021-05-26T23:14:31-08:00
Duration: 4 min 19 s
Channel: Ekaveera Kumar
Description: Find the Theivenin and Norton equivalent circuits for the circuit shown in Figure P 2.88

step 1 Alright, so let's find the Thévanines and Norton's equivalent circuits for the following circuit

Find the Theivenin and Norton equivalent circuits for the...

Key Concepts

Thevenin's Theorem

This theorem states that any linear electrical network with voltage sources, current sources, and resistors can be replaced by a single voltage source in series with a single resistor. The process involves determining the open-circuit voltage at the output terminals and calculating the equivalent resistance seen from those terminals when all independent sources are turned off.

Norton's Theorem

Norton's theorem is a counterpart to Thevenin's theorem. It indicates that the same network can also be equivalently represented by a current source in parallel with a resistor. The Norton equivalent is obtained by finding the short-circuit current at the output terminals and the equivalent resistance, which is the same as that in the Thevenin equivalent.

Equivalent Circuit Analysis

This concept involves reducing a complex circuit into a simpler form that retains the same electrical behavior at the output terminals. The process aids in understanding, analyzing, or designing circuits and typically involves methods like applying Thevenin's or Norton's theorems, circuit reduction techniques, or source transformations.

Open-Circuit Voltage and Short-Circuit Current

These are the key parameters used in obtaining the Thevenin and Norton equivalents. The open-circuit voltage is measured across the output terminals when no load is connected, providing the Thevenin voltage. The short-circuit current is the current flowing when the output terminals are directly connected, forming the basis for calculating the Norton current, with both analyses relying on finding the equivalent resistance of the network.
