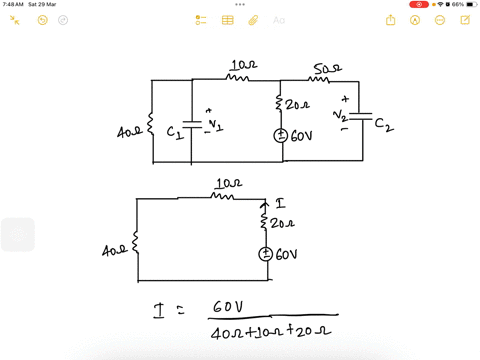

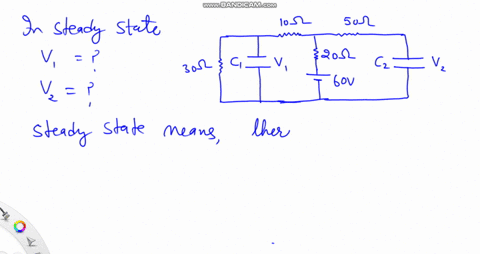

Find the voltage across the capacitors in the circuit of Fig. 6.49 under de conditions..

Name: Problem 12, Chapter 6: Fundamentals of Electric Circuits
Uploaded: 2022-01-28T07:38:49-08:00
Duration: 1 min 27 s
Channel: Amit Srivastava
Description: Find the voltage across the capacitors in the circuit of Fig. 6.49 under de conditions..

step 1 find the voltage across the capacitor if the circuit is under the DC condition the circuit is gi

Find the voltage across the capacitors in the circuit of...

Key Concepts

Capacitor Fundamentals

This concept involves understanding how capacitors store electrical energy as an electric field between two conductors. The voltage across a capacitor is directly related to the charge stored and its capacitance, following the equation Q = CV, which is fundamental in analyzing how capacitors behave in electrical circuits.

Equivalent Capacitance

When multiple capacitors are present in a circuit, they can often be combined into a single equivalent capacitor to simplify analysis. This involves calculating the equivalent capacitance for both series and parallel combinations, which is essential for simplifying complex capacitor networks and determining overall voltage and charge distribution.

Voltage Division in Capacitor Networks

In circuits where capacitors are connected in series, the total voltage is divided among them based on their individual capacitance values. This concept is analogous to voltage division in resistive networks, but with the division being inversely proportional to the capacitance. Understanding this principle is key to determining the voltage across each capacitor in the network.

Transient Response in RC Circuits

Many capacitor circuits involve dynamic behavior when subjected to changes, such as switching operations. The transient response, characterized by exponential charging or discharging curves, is governed by the time constant (the product of resistance and capacitance). This analysis provides insights into how voltages and currents evolve over time before reaching a steady state.

Steady-State Analysis of Capacitors

In DC circuits, after a long time has elapsed, capacitors reach a steady state where they are fully charged and act as open circuits, meaning no current flows through them. This property is critical when analyzing capacitor circuits under steady conditions as it directly affects the voltage distribution and overall circuit behavior.
