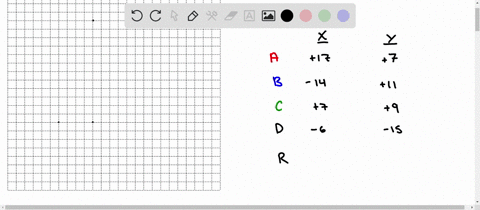

step 1 In this example, they give us six displacement vectors and their X and Y components. They want u

Find the x - and y -components of each resultant vector 𝐑...

Find the $x$ - and $y$ -components of each resultant vector $\mathbf{R}$ and graph the resultant vector $\mathbf{R}$. Vector $\quad x$ -component $\quad y$ -component $$ \begin{array}{lll} \text { A } & -7 & +15 \\ \text { B } & +13.5 & -17.5 \\ \text { C } & -7.5 & -20 \\ \text { D } & +6 & +13.5 \\ \text { E } & +2.5 & +2.5 \\ \text { F } & -11 & +11.5 \\ \text { R } & & \end{array} $$

Find the $x$ - and $y$ -components of each resultant vector $\mathbf{R}$ and graph the resultant vector $\mathbf{R}$.
Vector $\quad x$ -component $\quad y$ -component
$$
\begin{array}{lll}
\text { A } & -7 & +15 \\
\text { B } & +13.5 & -17.5 \\
\text { C } & -7.5 & -20 \\
\text { D } & +6 & +13.5 \\
\text { E } & +2.5 & +2.5 \\
\text { F } & -11 & +11.5 \\
\text { R } & &
\end{array}
$$

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Component-wise Addition

When adding vectors, their corresponding components are added separately. The resultant vector's x-component is the sum of all individual vectors' x-components, and the y-component is the sum of all y-components. This method simplifies the calculation of the resultant vector without needing to convert to polar coordinates.

Graphical Representation of Vectors

Graphing vectors typically involves placing them in a coordinate system where they can be drawn as arrows from an initial point to a terminal point. The tip-to-tail method is commonly used to visualize vector addition, where the tail of each subsequent vector starts at the tip of the previous one, and the resultant vector is drawn from the tail of the first vector to the tip of the last vector.

Vector Components

In two-dimensional space, any vector can be represented by its horizontal (x) and vertical (y) components. This representation allows one to work with the vector in terms of its projections along the coordinate axes, making it easier to perform arithmetic and geometric operations.
