Follow the directions for Question 7 for a salt bridge cell...

Name: Problem 8, Chapter 18: Chemistry - Principles and Reactions
Uploaded: 2021-07-29T22:12:50-08:00
Duration: 1 min 20 s
Channel: David Collins

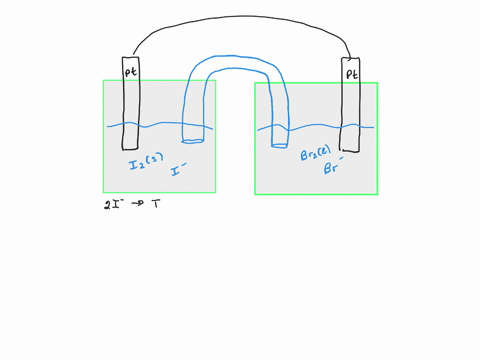

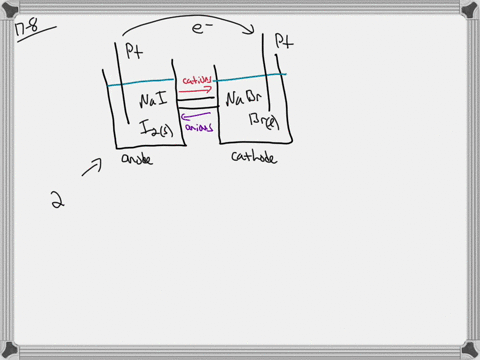

Description: Follow the directions for Question 7 for a salt bridge cell in which the anode is a platinum rod immersed in an aqueous solution of sodium iodide containing solid iodine crystals. The cathode is another platinum rod immersed in an aqueous solution of sodium bromide with bromine liquid.

Follow the directions for Question 7 for a salt bridge cell in which the anode is a platinum rod immersed in an aqueous solution of sodium iodide containing solid iodine crystals. The cathode is another platinum rod immersed in an aqueous solution of sodium bromide with bromine liquid.

Key Concepts

Galvanic Cell

A galvanic cell is an electrochemical system that converts chemical energy into electrical energy through spontaneous redox reactions occurring in two separate half-cells. Each half-cell contains an electrode and an electrolyte, where oxidation and reduction processes are spatially separated, generating a potential difference between the electrodes that drives electron flow through an external circuit.

Redox Reactions

Redox reactions involve the transfer of electrons between chemical species, with one species undergoing oxidation (loss of electrons) and another undergoing reduction (gain of electrons). These complementary processes form the basis of the energy generation in electrochemical cells, determining the direction of electron flow and overall cell potential.

Half-Cells

Half-cells are the individual compartments in a galvanic cell where oxidation and reduction reactions occur independently. Each half-cell is composed of an electrode immersed in an electrolyte solution, providing a distinct environment in which the respective redox reaction can proceed, and their combined potentials determine the overall cell voltage.

Salt Bridge

A salt bridge is a key component that connects the two half-cells in a galvanic cell, allowing the migration of ions to maintain electrical neutrality during the redox reaction. This ionic movement prevents charge buildup that would otherwise inhibit continuous electron flow, thereby sustaining the cell’s operation over time.

Inert Electrodes

Inert electrodes, such as those made from platinum, are used in electrochemical cells when the electrode material is not intended to participate in the chemical reactions. Their primary function is to provide a conductive surface for electron transfer, ensuring that the electrode does not chemically interfere with the redox processes occurring in the half-cells.

Transcript
