For a certain p-n junction diode, the saturation current at room temperature (20^∘C) is 0.950 mA

For a certain p-n junction diode, the saturation current at...

Key Concepts

p-n Junction Diode Behavior

A p-n junction diode is formed by joining p-type and n-type semiconductor materials. Its behavior is characterized by low resistance when forward biased and high resistance when reverse biased, with current flow governed by the potential barrier at the junction. Understanding this behavior is crucial in analyzing how voltages and currents interact in these devices.

Diode Equation

The diode equation relates the current flowing through a diode to the voltage across it and the saturation current. It is given by I = I_S (exp(V/(nV_T)) - 1), where I_S is the saturation current, n is the ideality factor, and V_T is the thermal voltage. This equation is fundamental in describing the exponential nature of the current-voltage relationship in diodes.

Thermal Voltage

Thermal voltage, denoted as V_T, is a temperature-dependent parameter defined by V_T = kT/q, where k is the Boltzmann constant, T is the absolute temperature, and q is the elementary charge. At room temperature (approximately 300 K), V_T is typically around 26 mV. This parameter is essential in setting the scale of the exponential relationship in the diode equation.

Dynamic (Differential) Resistance

The dynamic or differential resistance of a diode is defined as the derivative dV/dI at a particular operating point. It quantifies the small-signal resistance and is approximated by r_d = nV_T/I for forward bias operation. This concept is important when analyzing the response of the diode to small variations in voltage around a bias point.

Transcript

00:01 In the current problem 42 .30, we are given that we have a pn junction diode with a saturation current of 0 .95 milla amps whenever at the temperature 20 degrees celsius.

00:22 And we are wanting to find the resistance of this diode at given voltages, both for part a.

00:31 85 millivolts and for part b minus 50 millivolts and so knowing what we are looking for we can start out by converting into the scientific si unit for temperature which is kelvin so that bumps us from 20 degrees celsius to 293 kelvin it's no longer degrees it's an absolute unit.

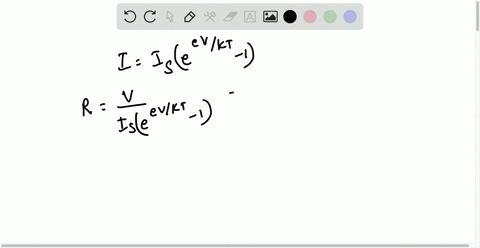

01:07 And we are wanting to find resistance, which the standard formula for resistance applies here, which is simply v over i.

01:22 So voltage over current.

01:25 However, this current depends on temperature and voltage, since we have a diode system here.

01:39 So our current has a form like this, where i is equal to the saturation current is multiplied by e to the elementary electric charge, voltage all over boltzman's constant and the temperature.

02:05 And then we subtract 1, and this is the form for the current at a given voltage and temperature.

02:17 So then when it comes time to executing this problem, we simply have to plug and chug because we have saturation current, we have voltage, we have temperature, and these are constants, so we have everything we need.

02:40 And i'll move to a new page here.

02:46 If you start plugging stuff in for part a, you get that the.....
