For laminar boundary layers, it is reasonable to expect that δ/ δt ≈Pr^n, where n is a positive

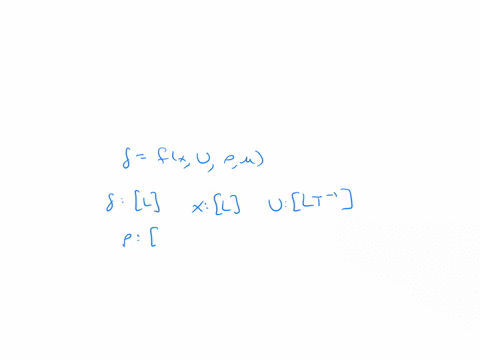

step 1 Let delta be f of x u row mu. The dimensions, delta is l, x is l, u is l, u is l t to the negati

For laminar boundary layers, it is reasonable to expect that...

For laminar boundary layers, it is reasonable to expect that $\delta / \delta_{t} \approx \operatorname{Pr}^{n}$, where $n$ is a positive exponent. Consider laminar boundary layer flow over a flat plate with air at $100^{\circ} \mathrm{C}$ and $1 \mathrm{~atm}$, where the thermal boundary layer thickness is approximately $15 \%$ larger than the velocity boundary layer thickness. Determine the ratio of $\delta / \delta_{\mathrm{t}}$ if the fluid is engine oil (unused) under the same flow conditions.

For laminar boundary layers, it is reasonable to expect that $\delta / \delta_{t} \approx \operatorname{Pr}^{n}$, where $n$ is a positive exponent. Consider laminar boundary layer flow over a flat plate with air at $100^{\circ} \mathrm{C}$ and $1 \mathrm{~atm}$, where the thermal boundary layer thickness is approximately $15 \%$ larger than the velocity boundary layer thickness.
Determine the ratio of $\delta / \delta_{\mathrm{t}}$ if the fluid is engine oil (unused) under the same flow conditions.

Key Concepts

Scaling Laws in Boundary Layers

Scaling laws and similarity solutions in boundary layer theory provide approximate relations between boundary layer thicknesses and fluid properties. An example is the power?law relationship ?/?? ? Pr?, where ? is the velocity boundary layer thickness, ?? is the thermal boundary layer thickness, and n is an exponent that reflects the balance between momentum and heat diffusion. Such relationships allow estimation of one thickness when the other and the fluid’s Prandtl number are known.

Prandtl Number

The Prandtl number is a dimensionless parameter defined as the ratio of momentum diffusivity (kinematic viscosity) to thermal diffusivity. It provides a measure of the relative thicknesses of the velocity and thermal boundary layers. Fluids with low Prandtl numbers have thicker velocity boundary layers relative to their thermal boundary layers and vice versa for high Prandtl numbers.

Velocity and Thermal Boundary Layers

In boundary layer flows, the velocity boundary layer is the region of the fluid where the velocity changes from zero at the wall (due to the no?slip condition) to the free stream value, while the thermal boundary layer is the region in which the temperature transitions from that of the wall to the free stream temperature. Their relative thicknesses reflect the rates at which momentum and heat diffuse through the fluid.

Laminar Boundary Layer Theory

Laminar boundary layer theory deals with the gradual development of velocity and thermal gradients near a solid surface where the flow is smooth and orderly. It describes how viscous effects extend from the surface into the free stream, forming a region (boundary layer) in which momentum and heat transfer occur primarily via conduction/diffusion, with negligible turbulent mixing.
