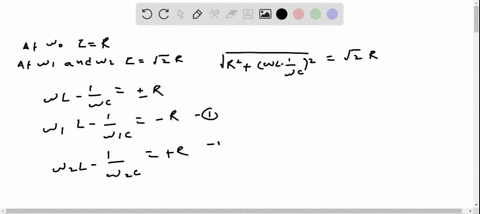

For $R L C$ circuits in which the resistance isn't too high, the $Q$ cH factor may be defined as the ratio of the resonant frequency to the difference between the two frequencies where the power dissipated in the circuit is half the power dissipated at resonance. Using suitable approximations, show that this definition leads to $Q=\omega_{0} L R$, with $\omega_{0}$ the resonant frequency.

Key Concepts

Approximation Methods in RLC Circuits

When the resistance in the circuit is not too high, approximations can be made assuming that the deviations of the frequencies from the resonant frequency are small. This allows simplification of the expressions for the impedance and power, leading to an analytical derivation of the Q factor that relates the circuit parameters (L, R, and ??) directly.

Derivation via the Half-Power Method

Starting from the frequency-dependent power expression in a series RLC circuit, one identifies the half-power frequency points by setting the power equal to half its maximum value at resonance. With suitable approximations for a lightly damped circuit, this method leads to a simplified relationship among ??, L, and R, ultimately yielding the approximate expression Q = ??L/R.

Half-Power Bandwidth

The half-power bandwidth method defines Q as the ratio of the resonant frequency to the difference between the two frequencies at which the power dissipated in the circuit falls to half of its peak (resonant) value. These frequencies, sometimes called the -3 dB points, provide an accessible measure of the circuit’s selectivity and damping.

Quality Factor

The Quality Factor (Q) is a dimensionless parameter that quantifies the sharpness of the resonance peak in a circuit. It relates the stored energy to the energy dissipated per cycle at resonance. A high Q indicates low energy loss relative to the energy stored, leading to a narrow bandwidth relative to the resonant frequency.

Resonance

Resonance in an RLC circuit occurs when the inductive and capacitive reactances cancel each other out, resulting in a purely resistive impedance at the resonant frequency (??). This frequency is the natural frequency of oscillation where the circuit exhibits maximum response, and it plays a central role in understanding energy storage and transfer within the circuit.
