For the angle cross section indicated, determine the...

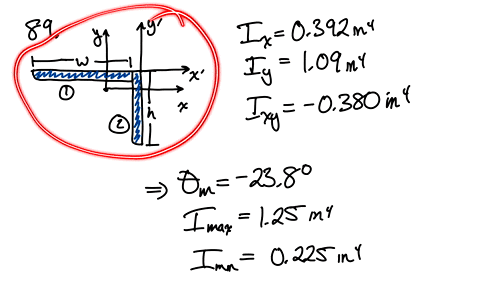

For the angle cross section indicated, determine the orientation of the principal axes at the origin and the corresponding values of the moments of inertia.
The $L 152 \times 102 \times 12.7-\mathrm{mm}$ angle cross section of Prob. 9.78

Key Concepts

Coordinate Transformation of Inertia

The coordinate transformation of inertia refers to the mathematical process of rotating the reference axes to obtain the moments of inertia about new axes. This transformation is used to identify the principal moments of inertia and the corresponding principal axes by computing the rotation angle that eliminates the product of inertia. This concept is vital for analyzing complex cross-sectional shapes, as it simplifies the calculation and interpretation of bending and torsional responses.

Product of Inertia

The product of inertia is a measure that indicates the distribution of area (or mass) about two perpendicular axes, and it represents the coupling between the bending responses about those axes. In analysis, a nonzero product of inertia implies that the axes are not principal. Setting the product of inertia to zero through an appropriate coordinate transformation leads to the identification of the principal axes.

Moment of Inertia

The moment of inertia is a property of a shape that quantifies its resistance to bending or rotation about a given axis. It depends on the geometry of the cross section and is calculated by integrating the squared distance of each differential area element from the axis. This concept is central to structural analysis and mechanical design, as it influences how a structure behaves under loads.

Principal Axes

Principal axes are the mutually perpendicular axes about which the product of inertia vanishes, meaning there is no coupling between bending about these axes. Determining these axes simplifies the analysis of complex shapes by transforming the inertia tensor into a diagonal form, leading to decoupled bending and twisting behavior. The orientation of the principal axes is found by rotating the reference coordinate system until the cross product terms in the moment of inertia calculations are zero.
