For the beam and loading shown, determine the largest shearing stress in section n-n.

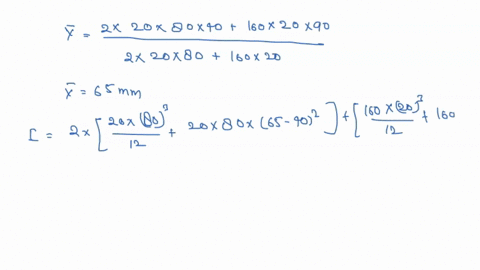

Letu0027s think step by step.u000Au000A### Step 1:u000A**Identify the given information:**u000Au002D The beam and loadin

For the beam and loading shown, determine the largest...

Key Concepts

Cross-Sectional Properties

The cross-sectional properties of a beam, such as the moment of inertia and the first moment of area, are critical in determining its response to loads. The moment of inertia quantifies the beam’s resistance to bending, while the first moment of area is used to calculate the distribution of shear flow or stress. Accurate determination of these properties is essential for reliable structural analysis and design.

VQ/(It) Shear Formula

The shear formula, expressed as ? = VQ/(I·t), is a fundamental equation used to calculate shear stress in beams. In this formula, V is the shear force, Q is the first moment of the area above (or below) the point of interest, I is the moment of inertia of the entire cross-section, and t is the width of the section at that point. This relationship helps engineers determine where the maximum shear stress occurs in a beam, ensuring that the design remains within safe limits.

Internal Shear Force

Internal shear force is the resultant force that acts perpendicular to the cross-section of a beam due to applied loads. It is determined by isolating a segment of the beam and applying equilibrium conditions, which helps in understanding how loads are transferred along the beam. This concept is fundamental in structural analysis, as it is directly related to the distribution and magnitude of shear stresses within the beam.

Shear Stress Distribution in Beams

Shear stress in a beam arises from internal forces induced by applied loads, and its distribution is typically non-uniform across the cross-section. The maximum shear stress is often found at a particular point within the cross-section, such as the neutral axis, depending on the geometry. Understanding this distribution is crucial for assessing whether a beam can safely support the applied loads without experiencing local failures.
