For the beam and loading shown, determine the minimum...

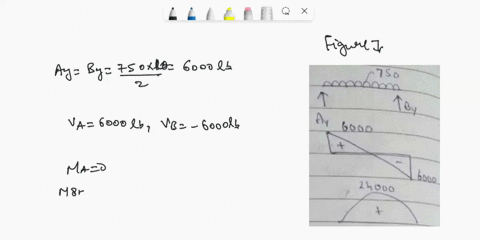

For the beam and loading shown, determine the minimum required depth $h$ knowing that for the grade of timber used $\sigma_{\text {all }}=1750 \mathrm{psi}$ and $\tau_{\text {all }}=130 \mathrm{psi}$.
(FIGURE CAN'T COPY)

Key Concepts

Bending Stress

Bending stress arises in a beam when an external load causes it to bend. It is directly related to the bending moment and inversely proportional to the section modulus of the beam's cross?section. In design, ensuring that the maximum bending stress does not exceed the material’s allowable bending stress is crucial to prevent failure.

Shear Stress

Shear stress in beams is generated by forces that try to slide one part of the beam past another. The maximum shear stress typically occurs near the neutral axis, and it is determined by the applied shear force divided by the effective area resisting shear. Checking that the shear stress remains below the allowable shear stress is essential in structural design.

Section Modulus

The section modulus is a geometric property of a beam’s cross section that plays a key role in bending. It relates the shape and size of the cross?section to the bending stress and is defined as the moment of inertia divided by the distance from the neutral axis to the extreme fiber. A sufficient section modulus is necessary to ensure that the beam can safely carry the bending loads.

Allowable Stress

Allowable stress refers to the maximum stress that a material is permitted to experience under load without failure. In timber design, the allowable bending and shear stresses are determined by the grade of the timber and used as limits in design calculations to ensure the beam's safety and performance under the applied loads.

Structural Beam Design

Structural beam design involves analyzing the effects of applied loads, estimating internal forces such as bending moments and shear forces, and determining the appropriate cross-sectional dimensions so that the stresses do not exceed the material’s allowable limits. This includes the integration of bending, shear, and geometry considerations to ensure the stability and integrity of the beam.
