For the BJT in Prob. 7.20, calculate α, β, IE, IB, and IC for the two values of VE B What is the

step 1 In this question we have to find BV the breakdown voltage for C EO for different cases. First we

For the BJT in Prob. 7.20, calculate α, β, IE, IB, and IC...

Key Concepts

Bipolar Junction Transistor (BJT) Operation

Understanding how a bipolar junction transistor works is fundamental. It involves the injection of carriers (electrons or holes) from the emitter into the base, their diffusion, and eventually collection at the collector. The operating regions of the BJT, namely active, saturation, and cutoff, depend on the biasing conditions applied to these junctions.

Current Gain (? and ?)

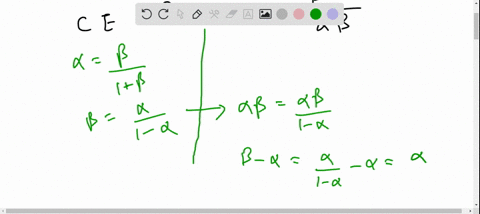

In BJTs, the current amplification factors are critical. The common-base current gain, denoted by ?, is the ratio of the collector current (I_C) to the emitter current (I_E), representing the efficiency of carrier transfer from emitter to collector. On the other hand, the common-emitter current gain, ?, is defined as the ratio of the collector current to the base current (I_B) and is related to ? by the equation ? = ?/(1 – ?). These factors are central when designing or analyzing amplifier circuits.

Exponential I-V Characteristics of the Base-Emitter Junction

The base-emitter junction of a BJT behaves similarly to a diode, following an exponential current-voltage relationship as described by the diode equation. This relationship is essential for predicting how the emitter, base, and collector currents will vary with changes in the junction voltage, particularly when varying the base-emitter bias voltage (V_EB).

Biasing Effects on BJT Operation

The biasing voltage, such as V_EB in a BJT, directly controls the level of carrier injection from the emitter into the base. Variations in this voltage lead to exponential changes in the emitter current, which in turn affects the base and collector currents through the current gains (? and ?). This concept is key in understanding how different operating conditions impact transistor performance.

Base Gummel Number

The base Gummel number is a parameter that quantifies the number of minority carriers in the base region and serves as a measure of the base’s effective doping and recombination characteristics. It is critical for modeling and predicting recombination losses within the base, thereby influencing the overall current gain and efficiency of the transistor.
