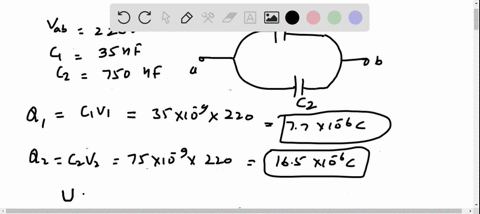

For the capacitor network shown in Fig. E24.29, the potential difference across ab is 220 V. Fin

step 1 All right, so in this circuit, so we have two parallel connected connected capacitors. So this i

For the capacitor network shown in Fig. E24.29, the...

For the capacitor network shown in $\textbf{Fig. E24.29}$, the potential difference across $ab$ is 220 V. Find (a) the total charge stored in this network; (b) the charge on each capacitor; (c) the total energy stored in the network; (d) the energy stored in each capacitor; (e) the potential difference across each capacitor.

Key Concepts

Potential Difference and Voltage Division

In capacitor networks, the potential difference (or voltage) across each capacitor can vary depending on the circuit configuration. In a series circuit, the supply voltage divides among capacitors inversely proportional to their capacitances, while in a parallel circuit, each capacitor experiences the same potential difference. This concept is fundamental for determining the voltage across individual components in complex circuits.

Energy Stored in Capacitors

The energy stored in a capacitor is given by the equation E = 1/2 CV^2, where C is the capacitance and V is the voltage across the capacitor. This concept is important for analyzing the performance of capacitor networks, as it allows for the calculation of both the total energy stored in the network and the energy stored in each individual capacitor. Energy considerations are essential in applications ranging from power supplies to energy storage systems.

Charge Distribution

Charge distribution in a capacitor network refers to how the total electrical charge is allocated among different capacitors. In a series arrangement, each capacitor carries the same charge, while in parallel arrangements, the charge divides according to the respective capacitances. Understanding charge distribution is crucial for solving for individual capacitor quantities in a network.

Series and Parallel Combinations

Capacitors can be connected in series or parallel, significantly affecting the overall behavior of the network. In series connections, the reciprocal of the equivalent capacitance is the sum of the reciprocals of the individual capacitances, and the same charge appears on each capacitor, with the voltage dividing among them. In parallel connections, the equivalent capacitance is the sum of the capacitances, and the voltage across each capacitor is the same. Understanding these configurations is key to analyzing complex networks.

Capacitance

Capacitance is a measure of a capacitor's ability to store electrical charge per unit potential difference. It is defined as the ratio of the charge stored on the capacitor to the voltage across its terminals and is measured in farads. This concept is fundamental when analyzing how capacitors behave in circuits, especially in relation to charging, discharging, and energy storage.

Equivalent Capacitance

The concept of equivalent capacitance simplifies the analysis of circuits by allowing a network of capacitors to be replaced with a single capacitor that stores the same total charge at a given voltage. Calculating equivalent capacitance involves applying different rules for series and parallel combinations and is essential for determining overall circuit properties such as total stored charge and energy.
