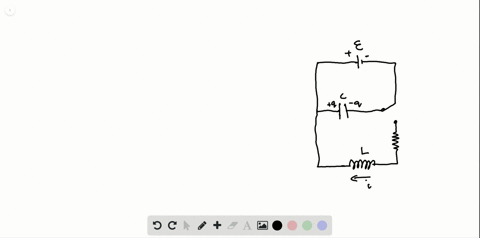

For the circuit of Fig. 30.17 , let C=15.0 nF, L=22 mH, and R=75.0 Ω. (a) Calculate the oscillat

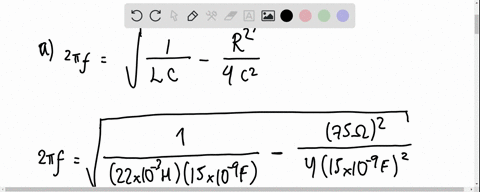

step 1 In the part of this problem, we have to calculate the oscillation frequency of the circuit. So l

For the circuit of Fig. 30.17 , let C=15.0 nF, L=22 mH, and...

Key Concepts

Critical Damping Condition

Critical damping represents the boundary condition between oscillatory (underdamped) and non-oscillatory (overdamped) behavior in an RLC circuit. It occurs when the damping provided by the resistor is just enough to prevent oscillations, allowing the system to return to its equilibrium position in the shortest possible time without overshooting. The critical value of resistance can be determined from the condition where the damping factor equals the natural frequency, leading to a specific formula linking R, L, and C. This concept is widely used in circuit design and control systems to achieve optimal transient response.

Exponential Decay of Amplitude

The amplitude of oscillations in a damped system decays exponentially over time as energy is dissipated by the resistor. This decay can be quantified with an exponential term in the oscillator’s solution, where the time constant is determined by the damping factor (R/2L in an RLC circuit). Understanding this exponential decay is essential for calculating the time it takes for the oscillation amplitude to reduce to a specific fraction of its initial value, which is a typical requirement in analyzing transient responses.

Damped Harmonic Oscillator

In an RLC circuit, damping arises from the resistor which dissipates energy, leading to a reduction in the amplitude of oscillations over time. The system behaves as a damped harmonic oscillator where the rate of decay of the oscillations is governed by the damping factor, defined as the resistance divided by twice the inductance. Depending on the relative values of R, L, and C, the system can be underdamped (oscillatory), critically damped (fastest return to equilibrium without overshoot), or overdamped (slow non-oscillatory return to equilibrium).

RLC Circuit Dynamics

An RLC circuit consists of a resistor (R), an inductor (L), and a capacitor (C) connected in series or parallel, and it is a primary example of a second?order electrical system. The circuit’s behavior is characterized by the interplay of energy storage elements (the capacitor and the inductor) and energy dissipation by the resistor. This kind of circuit can exhibit oscillatory behavior when the system is underdamped, and its dynamics can be analyzed using second-order differential equations analogous to those of mechanical oscillators.

Damped Oscillation Frequency

For an underdamped RLC circuit, the oscillations occur at a frequency lower than the natural undamped frequency due to the presence of damping. This frequency, known as the damped oscillation frequency, is calculated as the square root of the difference between the square of the natural angular frequency (1/?(LC)) and the square of half the damping factor (R/2L). This concept is fundamental for determining how quickly the circuit oscillates when energy is alternately exchanged between the inductor and the capacitor while energy is simultaneously lost due to resistance.
