For the circuit shown figure, which of the following...

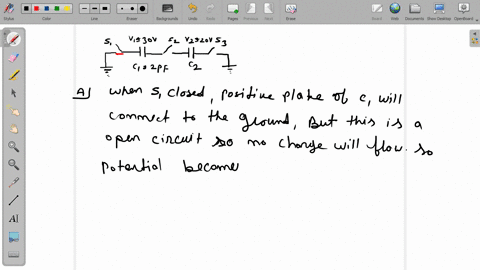

For the circuit shown figure, which of the following statements is true ? (A) With $\mathrm{S}_{1}$ closed $\mathrm{V}_{1}=15 \mathrm{~V}, \mathrm{~V}_{2}=20 \mathrm{~V}$ (B) With $\mathrm{S}_{3}$ closed $\mathrm{V}_{1}=\mathrm{V}_{2}=20 \mathrm{~V}$ (C) With $\mathrm{S}_{1}$ and $\mathrm{S}_{3}$ closed $\mathrm{V}_{1}=\mathrm{V}_{2}=0$ (D) With $\mathrm{S}_{1}$ and $\mathrm{S}_{3}$ closed $\mathrm{V}_{1}=30 \mathrm{~V}, \mathrm{~V}_{2}=20 \mathrm{~V}$

For the circuit shown figure, which of the following statements is true ?
(A) With $\mathrm{S}_{1}$ closed $\mathrm{V}_{1}=15 \mathrm{~V}, \mathrm{~V}_{2}=20 \mathrm{~V}$
(B) With $\mathrm{S}_{3}$ closed $\mathrm{V}_{1}=\mathrm{V}_{2}=20 \mathrm{~V}$
(C) With $\mathrm{S}_{1}$ and $\mathrm{S}_{3}$ closed $\mathrm{V}_{1}=\mathrm{V}_{2}=0$
(D) With $\mathrm{S}_{1}$ and $\mathrm{S}_{3}$ closed $\mathrm{V}_{1}=30 \mathrm{~V}, \mathrm{~V}_{2}=20 \mathrm{~V}$

Key Concepts

Switch Operation in Circuits

Switches are key components that can open or close electrical paths, thereby changing the circuit topology. Their operation directly affects how current flows and how voltages are distributed throughout the circuit. The transition between open and closed states is essential in analyzing transient and steady?state behavior in circuits with multiple pathways.

Voltage Sources

Voltage sources provide a constant potential difference between their terminals, regardless of the current drawn from them in an ideal scenario. Understanding how voltage sources interact when connected in series or parallel, and how they influence the overall circuit behavior when switches alter the connection paths, is crucial for accurate circuit analysis.

Kirchhoff’s Voltage Law (KVL)

Kirchhoff’s Voltage Law states that the sum of all electrical potential differences around any closed loop in a circuit must equal zero. This law is fundamental for analyzing circuits, especially those altered by the opening and closing of switches, as it assists in determining voltage drops across various elements and correctly predicting circuit behavior.

Circuit Analysis Techniques

Circuit analysis involves using systematic methods such as applying KVL, Kirchhoff’s Current Law (KCL), and other network theorems to understand and predict circuit behavior under different configurations. These techniques are essential for analyzing how changes in circuit topology, such as the engagement of different switches, affect voltages and currents in the circuit.
