Question
For the LED circuit of Example 8.13, determine the LED power consumption if the LED consumes 30 mA and the diode voltage is 1.5 V . How much power is required of the source?
Your feedback will help us improve your experience
Manish Kumar and 77 other educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Recommended Videos

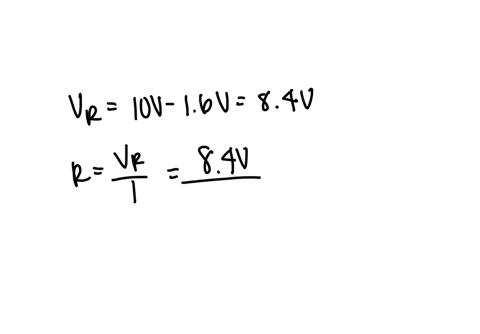

1)What value of series resistor is required to limit the current through a LED to 20 mA with a forward voltage drop of 1.6 V when connected to a 10V supply ? 2)What is current through the LED in the circuit shown in Figure 8.13 ? Assume that voltage drop across the LED is 2 V.
A circuit includes a 12 VDC power supply which powers a blue high-intensity LED with a forward voltage of 4.5 volts. The LED is rated to withstand a maximum current of 20 mA. What size resistor should be connected in series with the LED?

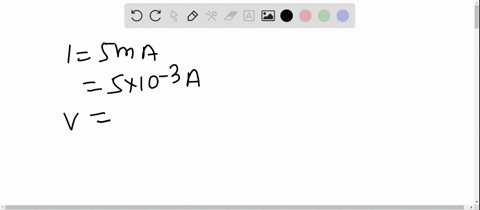

If a clock draws a maximum current of 5 mA from a 120 - V line, what is its maximum power consumption?
