For the sample data (-|1 ·24)/(y |41 ·2-10) a. Draw the scatter plot. b. Based on the scatter pl

step 1 The following is a solution to number three. We're given a data set. Here are the X values, 1, 4

For the sample data (-|1 ·24)/(y |41 ·2-10) a. Draw the...

For the sample data $$ \frac{-\mid 1 \cdot 24}{y \mid 41 \cdot 2-10} $$ a. Draw the scatter plot. b. Based on the scatter plot, predict the sign of the linear correlation coefficient. Explain your answer. c. Compute the linear correlation coefficient and compare its sign to your answer to part $(b)$

For the sample data
$$
\frac{-\mid 1 \cdot 24}{y \mid 41 \cdot 2-10}
$$
a. Draw the scatter plot.
b. Based on the scatter plot, predict the sign of the linear correlation coefficient.
Explain your answer.
c. Compute the linear correlation coefficient and compare its sign to your answer
to part $(b)$

Key Concepts

Predicted Sign of Correlation

Predicting the sign of the correlation involves analyzing the scatter plot to see whether the variables tend to increase together or inversely. If the data points generally ascend as one variable increases, the correlation is positive; if they descend, it is negative. This estimation provides an initial hypothesis about the direction of the relationship before calculating the actual coefficient.

Data Visualization

Data visualization is the practice of representing data in a graphical or pictorial format to aid in understanding complex data relationships. Techniques such as scatter plots allow for immediate visual insight into data distribution and relationships, complementing numerical analyses by making patterns and trends more discernible.

Scatter Plot

A scatter plot is a type of graph that uses Cartesian coordinates to display values for two variables for a set of data. It offers a visual method to observe the relationship between the variables, identify patterns or trends, and highlight potential outliers. From a scatter plot, one can interpret whether the association between the variables appears to be linear, curved, or nonexistent.

Linear Correlation Coefficient

The linear correlation coefficient, often denoted by 'r', is a statistical metric that quantifies the strength and direction of a linear relationship between two quantitative variables. Its value ranges from -1 to 1, where values near 1 indicate a strong positive linear relationship, values near -1 indicate a strong negative linear relationship, and values near 0 suggest little to no linear association.

Transcript

00:01 The following is a solution to number three.

00:01 We're given a data set.

00:02 Here are the x values, 1, 4, 4, 4, 6, and 8.

00:05 And then the corresponding y values 4, 1, negative 1, and 0.

00:10 And for part a, we're supposed to draw the scatter plot.

00:12 And you can do that manually with the normal cartesian plane, or you can use any sort of technology you so wish.

00:18 And i'm going to use a technology.

00:19 I'm going to use a ti84, because it works out pretty nicely.

00:21 So if you go to stat on a ti84 and press edit, and l1 is where you're going to put your x values, and then l2 is going to be where you put.

00:30 Putting y values so 1 3 4 6 and 8 for the x and l1 and then 4 1 3 and negative 1 and then 0 for y and l2 then if you go to second y equals you go to that stat plot just make sure this first stat plot i like the first one and then the other ones are turned off so plot 1 is on so just make sure this is highlighted as for type it should be the scatter plots of this first graph here x list is l1 and y list is l2 unless you put it in different columns and then as for the mark you do any one of these that you want.

01:01 I like this first one because it shows up pretty nicely.

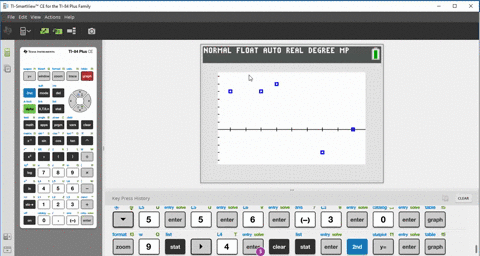

01:03 Then if you press graph, you can see the data values.

01:06 So there are the five points that we were given.

01:08 Now, if you don't see them, that's fine.

01:09 If you just go to zoom and then this ninth option zoom stat, then you should see what you're seeing on your screen now.

01:16 So these are the five points, and that's, you know, what you'd either print out or draw out.

01:23 So that's the first part.

01:24 And then we're supposed to predict the sign of r.

01:27 And if you go back to that scatter plot and draw an imaginary line that kind of goes in between all these points, the slope of that line will be negative, and that tells you what the sign of r is going to be.

01:38 It's going to be negative.

01:40 Also, as x is increasing, y is decreasing.

01:42 So if you go back to these data values, as the x increases, the y seems to be getting smaller and smaller.

01:49 So i'm going to say the prediction for the sign of r here is going to be negative.

01:56 Okay, negative for a lot of things...
