For the vectors A⃗ and B⃗ in Fig. E1.22, use a scale drawing to find the magnitude and direction

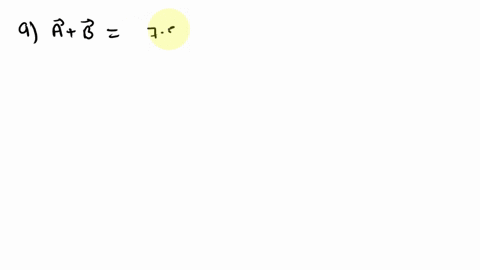

step 1 Hi, in this problem first we will draw the diagram in this diagram we have given a vector a is i

For the vectors A⃗ and B⃗ in Fig. E1.22, use a scale drawing...

For the vectors $\vec{A}$ and $\vec{B}$ in Fig. E1.22, use a scale drawing to find the magnitude and direction of (a) the vector $\operatorname{sum} \vec{A}+\vec{B}$ and $(b)$ the vector difference $\vec{A}-\vec{B}$. Use your answers to find the magnitude and direction of (c) $-\overrightarrow{\boldsymbol{A}}-\overrightarrow{\boldsymbol{B}}$ and (d) $\vec{B}-\vec{A}$. (See also Exercise 1.29 for a different approach.)

For the vectors $\vec{A}$ and $\vec{B}$ in Fig. E1.22, use a scale drawing to find the magnitude and direction of (a) the vector $\operatorname{sum} \vec{A}+\vec{B}$ and $(b)$ the vector difference $\vec{A}-\vec{B}$. Use
your answers to find the magnitude and direction of (c) $-\overrightarrow{\boldsymbol{A}}-\overrightarrow{\boldsymbol{B}}$ and
(d) $\vec{B}-\vec{A}$. (See also Exercise 1.29 for a different approach.)

Key Concepts

Vector Subtraction

Vector subtraction involves finding the difference between two vectors by adding the first vector and the negative of the second. Geometrically, this is often achieved by reversing the direction of the subtracted vector and then applying the tip-to-tail method for addition. This operation is crucial for determining relative positions or differences in forces and other directional quantities.

Scalar Multiplication and Negative Vectors

Scalar multiplication scales the magnitude of a vector without changing its direction unless the scalar is negative, which results in a reversal of direction. In the context of the problem, applying negative signs to vectors (e.g., -A or -B) is an example of scalar multiplication where the vector is multiplied by -1, reversing its direction while retaining its magnitude.

Vector Addition

Vector addition is the process of combining two or more vectors to yield a resultant vector. The geometric methods, such as the tip-to-tail method or the parallelogram rule, involve placing the tail of one vector at the tip of another and drawing the resultant from the tail of the first to the tip of the final vector. It is a fundamental operation in vector algebra that allows for the overall effect of multiple vectors to be determined, such as in forces or displacements.

Graphical Methods in Vector Operations

Using scale drawings to perform vector operations provides a visual approach to understanding vector addition and subtraction. This method involves accurately representing vectors to scale and applying geometric constructions to determine the resultant vector's magnitude and direction, which is essential in fields where spatial reasoning and precision drawings are required.
