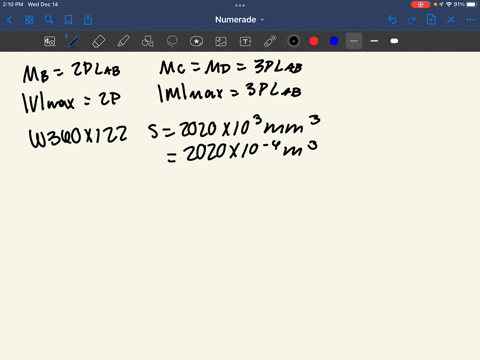

For the wide-flange beam with the loading shown, determine the largest load $\mathbf{P}$ that can be applied knowing that the maximum normal stress is 24 ksi and the largest shearing stress using the approximation $\tau_{m p}=V / A_{\mathrm{web}}$ is 14.5 ksi .(FIGURE CAN'T COPY)

Key Concepts

Bending Stress Analysis

This concept involves understanding how a beam subjected to external loads develops internal moments that cause bending. The stress induced by bending is distributed linearly along the beam’s cross?section and is typically calculated using the relationship ? = M·y/I, where M is the bending moment, y is the distance from the neutral axis, and I is the moment of inertia. This method is crucial in designing elements to ensure that the normal stresses do not exceed the material’s allowable limits.

Shear Stress Analysis

Shear stress in a beam refers to the stress that occurs due to transverse shear forces acting on the beam’s cross-section. Its calculation, often simplified to ? = V/A for specific parts of the section such as the web of an I-beam, is necessary to ascertain that the beam's structural components can safely resist sliding failures. This analysis ensures that the applied loads do not induce shear stresses beyond the permissible threshold.

Section Properties

Key geometric properties of a beam, such as the moment of inertia, the section modulus, and the web area, are integral to determining both bending and shear stresses. These properties govern how the material distributes internal forces and influence the overall strength and stiffness of the beam. An understanding of these properties is essential for sizing and designing beam sections appropriately under expected loading conditions.

Limit State Design

This principle involves determining the maximum load a structural element can carry based on different failure mechanisms, such as bending or shear. In practice, engineers use limit state criteria to ensure that neither the normal (bending) stresses nor the shear stresses exceed their allowable values. This approach is fundamental to safe and efficient structural design, ensuring that the beam performs reliably under the worst expected load conditions.
