Four identical charges Q are placed at the corners of a square of side L. (a) In a free-body dia

Four identical charges Q are placed at the corners of a...

Key Concepts

Symmetry Considerations

Symmetry considerations involve analyzing the geometric and charge configurations of a system to simplify the problem by identifying cancellations or patterns in the forces. In the case of charges arranged at the corners of a square, symmetry can be exploited to reduce the complexity of the calculations, as certain force components may cancel out.

Coulomb's Law

Coulomb's Law describes the force between two point charges; it states that the magnitude of the force between two charges is directly proportional to the product of their charges and inversely proportional to the square of the distance separating them. This law is fundamental when calculating the forces exerted by point charges on each other in any configuration.

Superposition Principle

The superposition principle in electromagnetism states that the total force acting on a charge due to multiple other charges is equal to the vector sum of the individual forces exerted by each of those charges. This principle is essential for problems involving several charges, as it allows for the independent calculation and subsequent vector addition of forces.

Vector Addition

Vector addition is a mathematical process used to combine forces that have both magnitude and direction. In the context of electric forces, vector addition is used to determine the resultant force acting on a charge by summing the contributions of individual forces, taking into account both their magnitudes and the angles at which they act.

Free-Body Diagram

A free-body diagram is a simplified representation that shows all the forces acting on a single object, depicted as arrows with appropriate directions and magnitudes. In problems involving electric charges, a free-body diagram helps in visualizing and organizing the forces due to other charges, which is critical for correctly applying vector addition.

Transcript

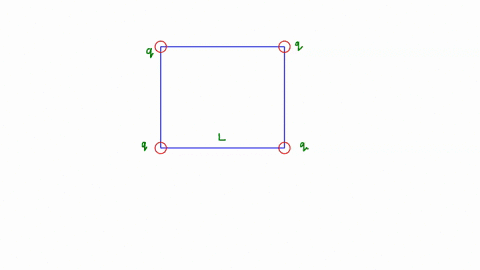

00:01 So in the first part of the problem, we have to draw all the charges and the forces acting on the charge.

00:09 On the forces acting on one of the charges.

00:13 So let's draw all the four charges.

00:16 So since they are placed in a square, so we need to draw a square first.

00:25 So that's the square.

00:27 And let me pick another color for the charges.

00:29 And all the charges have the same value.

00:36 So capital q, capital q, capital q, capital q, now let's mark the sides, sorry, let's mark the ages of the charges, the vertex, vertices of the charges.

00:50 So a, b, c, and d.

00:55 Now the length of each of the side, since this is a square, has to be same, let's say l, which which means that by pythagoras theorem we can find the length of the diagonal.

01:10 So add the squares of each of the sides and take the root over of that.

01:18 That gives the length of the diagonal to be root over of it.

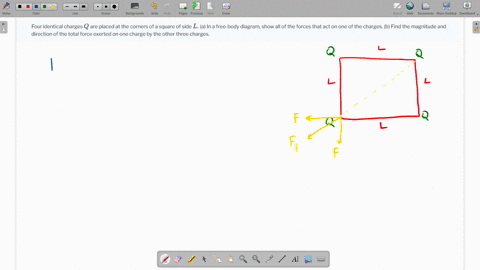

01:24 Now in order to find the force from any three charges on one, the other charge, so the force on the force on the other charge, so the force on, charge at b on a so i'm picking a as the charge for which i'll mark all the forces so all the forces will be situated at point a because this is a charge where i'm finding all the forces so force on a due to charge on b will be since both at the same value and both are positive so it will be outward since this will be a repulsive force so let's mark this fb.

02:13 Similarly, force on a due to force, force on charge on a due to charge on b will be, again, they have the same sign.

02:26 So this will be repelling as well.

02:29 So fd...
