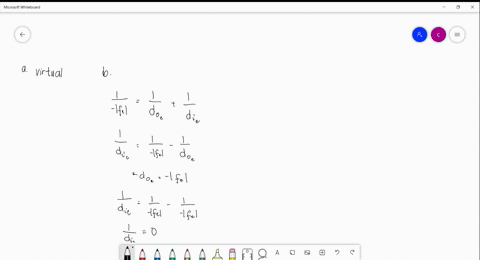

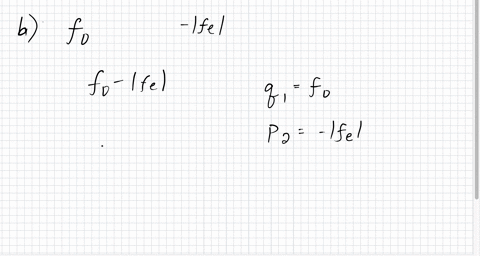

Galileo devised a simple terrestrial telescope that produces an upright image. It consists of a converging objective lens and a diverging eyepiece at opposite ends of the telescope tube. For distant objects, the tube length is equal to the objective focal length minus the absolute value of the eyepiece focal length. (a) Does the user of the telescope see a real or virtual image? (b) Where is the final image? (c) If a telescope is to be constructed with a tube of length 10.0 cm and a magnification of 3.00, what are the focal lengths of the objective and eyepiece?

Key Concepts

Image Formation in Optical Systems

In optical systems, lenses are used to form images through the process of refraction. The image formation process depends on the type and arrangement of lenses, with real images formed when the light rays physically converge and virtual images formed when the light rays appear to diverge from a common point. Understanding these processes is fundamental to the design of devices such as telescopes, microscopes, and cameras.

Galilean Telescope Design

The Galilean telescope is an optical instrument that uses a convex lens as the objective and a concave lens as the eyepiece. This design produces an upright, magnified, but virtual image. The geometry of the telescope is such that the separation between the lenses is equal to the focal length of the objective minus the absolute value of the focal length of the eyepiece, ensuring that the final image appears at infinity or in a position comfortable for the eye.

Virtual Image

A virtual image is one that appears to be located at a position where light rays do not actually converge. In optical systems, such images cannot be projected onto a screen because they are formed by the apparent divergence of rays from a point, rather than by the actual intersection of converging rays. In telescopes like Galileo’s, the eyepiece creates a virtual image so the observer sees an upright and magnified view of distant objects.

Focal Length

The focal length of a lens is the distance over which initially collimated (parallel) rays of light are brought to a focus (or made to appear to diverge from) by the lens. Converging (convex) lenses have positive focal lengths whereas diverging (concave) lenses have negative focal lengths. The focal length is key in determining the size, position, and character of images formed by the optical system, and it plays a crucial role in designing telescopes.

Angular Magnification

Angular magnification is the ratio of the angular size of the image seen through an optical instrument to the angular size of the object seen directly. In telescopes, it is typically defined as the ratio of the focal length of the objective lens to that of the eyepiece, taking into account the sign conventions for diverging lenses in certain designs. This concept determines how much larger (or more detailed) a distant object appears when observed through the instrument.
