Given a 7.4 pF air-filled capacitor, you are asked to...

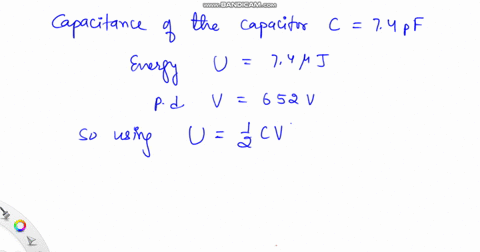

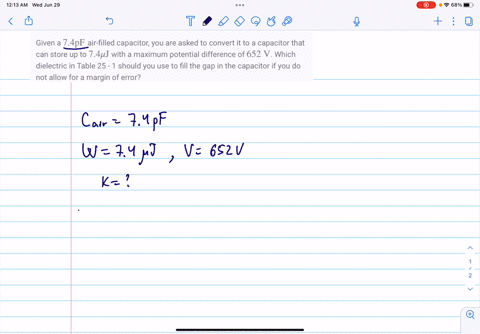

Given a 7.4 $\mathrm{pF}$ air-filled capacitor, you are asked to convert it to a capacitor that can store up to 7.4$\mu \mathrm{J}$ with a maximum potential difference of 652 $\mathrm{V} .$ Which dielectric in Table $25-1$ should you use to fill the gap in the capacitor if you do not allow for a margin of error?

Given a 7.4 $\mathrm{pF}$ air-filled capacitor, you are asked to convert it to
a capacitor that can store up to 7.4$\mu \mathrm{J}$ with a maximum potential difference of 652 $\mathrm{V} .$ Which dielectric in Table $25-1$ should you use to fill
the gap in the capacitor if you do not allow for a margin of error?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Modification of Capacitance with Dielectrics

When a dielectric material is introduced between the plates of a capacitor, it increases the capacitance by reducing the effective electric field within the capacitor. The new capacitance becomes C' = kC, where k is the dielectric constant. This modification allows the capacitor to store more energy at the same voltage, making it possible to achieve desired energy storage limits by selecting a dielectric material with an appropriate k value.

Dielectric Constant

The dielectric constant, or relative permittivity, is a measure of how well a material can increase the capacitance of a capacitor compared to an air gap. When a dielectric is inserted between the plates, the capacitance increases by a factor equal to the dielectric’s constant. This property is vital for tuning capacitors to meet specific energy storage or capacitance values in a circuit.

Energy Storage in Capacitors

This concept involves understanding that the energy stored in a capacitor depends on both its capacitance and the square of the voltage applied. The energy is given by the formula E = 1/2 C V². Determining how much energy a capacitor can store at a given voltage is crucial when modifying or designing circuits to meet specific energy requirements.
