Given two identical, ideal batteries of emf ℰ and two identical incandescent lightbulbs of resis

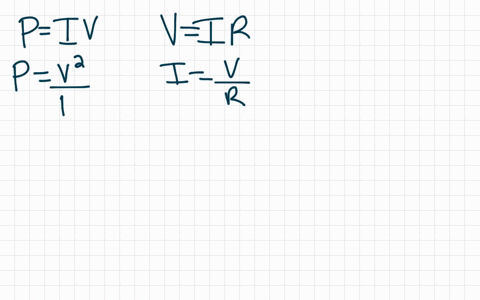

step 1 In this problem first I'm drawing the rough diagram so just look at it carefully This diagram wi

Given two identical, ideal batteries of emf ℰ and two...

Given two identical, ideal batteries of emf $\mathscr{E}$ and two identical incandescent lightbulbs of resistance $R$ (assumed constant), find the total power dissipated in the circuit in terms of $\mathscr{E}$ and $R$.

Key Concepts

Electromotive Force (EMF)

This is the voltage provided by a battery or power source. In circuit analysis, knowing the EMF is crucial because it determines the potential difference that drives current through the circuit. When multiple batteries are used, understanding how they combine (in series or parallel) is essential in calculating the net voltage available for the circuit.

Resistance

Resistance is a measure of how much a component opposes the flow of electric current. In circuits with lightbulbs or other resistors, resistance values determine how the voltage is divided and how much current flows. Since resistors in series or parallel combine differently, understanding this is key to analyzing the circuit’s behavior and its power dissipation.

Series and Parallel Circuit Analysis

In circuit theory, components such as batteries and lightbulbs may be connected in series or parallel. The arrangement affects both the total voltage and the equivalent resistance of the circuit. Recognizing these combinations is essential for determining how the overall circuit operates and for computing quantities like current and power.

Power Dissipation in Electric Circuits

Power dissipation refers to the conversion of electrical energy into heat within a resistor or load, and it is given by formulas like P = V²/R or P = I²R. This concept is central when evaluating how much energy is consumed or lost in a circuit, particularly when dealing with simple resistive components such as lightbulbs.
