Good lenses used in cameras and other optical devices are...

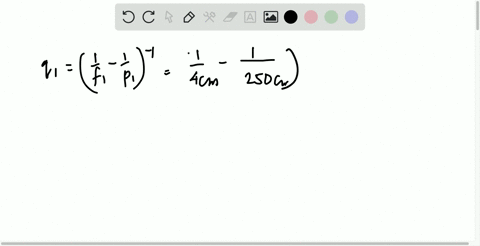

Good lenses used in cameras and other optical devices are actually compound lenses, made of five or more lenses put together to minimize distortions, including chromatic aberration. Suppose a converging lens with a focal length of $4.00 \mathrm{~cm}$ is placed right next to a diverging lens with focal length of $-20.0 \mathrm{~cm}$. An object is placed $2.50 \mathrm{~m}$ to the left of this combination. (a) Where will the image be located? (b) Is the image real or virtual?

Key Concepts

Real and Virtual Images

Real images are formed where light actually converges and can be projected onto a screen, while virtual images occur where light appears to diverge from a point but does not actually converge. Knowing the difference is essential for understanding the outcomes of using converging versus diverging lenses and the overall performance of optical systems.

Sign Conventions in Geometrical Optics

Sign conventions are necessary to consistently apply the lens equation and other optical formulas. They determine the positive and negative values for focal lengths, object distances, and image distances, and are critical for correctly predicting the nature and position of the images formed.

Lens Equation

The lens equation, 1/f = 1/d? + 1/d?, is central to determining where an image is formed by a lens. It relates the focal length (f) to the object distance (d?) and the image distance (d?) and is a fundamental relationship in geometrical optics.

Converging and Diverging Lenses

Converging lenses, typically having positive focal lengths, bring light rays together, and can form real images when objects are placed outside the focal point. Diverging lenses, with negative focal lengths, spread out light rays and generally form virtual images. Understanding these characteristics is key in analyzing how different types of lenses affect image formation.

Compound Lens Systems

In compound lens systems, multiple lenses are arranged such that their individual effects combine to correct aberrations and improve image quality. Analyzing such systems typically involves treating the lenses either separately in sequence or by computing an effective focal length, which simplifies understanding the overall behavior of the optical system.
