Hold your upper arm vertical and your lower arm horizontal...

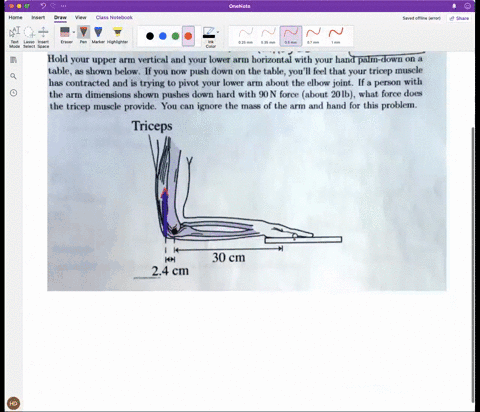

Hold your upper arm vertical and your lower arm horizontal with your hand palm-down on a table, as shown in Figure P8.47. If you now push down on the table, you'll feel that your triceps muscle has contracted and is trying to pivot your lower arm about the elbow joint. If a person with the arm dimensions shown pushes down hard with a $90 \mathrm{N}$ force (about $20 \mathrm{lb}),$ what force must the triceps muscle provide? You can ignore the mass of the arm and hand in your calculation.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Mechanical Advantage

Mechanical advantage is the ratio of the output force to the input force in a mechanical system, often achieved by varying the lengths of lever arms. It explains how systems can amplify force, allowing a relatively small muscle force to overcome a larger resistance by optimizing the lever configuration.

Static Equilibrium

Static equilibrium occurs when all the forces and torques acting on a system balance out, resulting in no net movement. This principle is used to analyze systems where forces are applied at different points, ensuring that the sum of torques about a pivot is zero for a body that is not rotating.

Torque

Torque is the tendency of a force to rotate an object about an axis or pivot point. It is calculated as the product of the force and the perpendicular distance from the pivot to the line of action of the force. This concept is fundamental in analyzing rotational effects in mechanical systems.

Lever Arms

Lever arms are the distances between the pivot point and the point where forces are applied. They determine how effectively a force can produce rotation, with longer lever arms generally allowing smaller forces to create larger torques. This concept is key in understanding the mechanics of levers and other rotational systems.
