Hot combustion gases enter the nozzle of a turbojet engine at 230 kPa, 627^∘ C, and 60 m / s an

step 1 So we have hot combustion gases that are entering a nozzle of a turbojet engine. It is coming in

Hot combustion gases enter the nozzle of a turbojet engine...

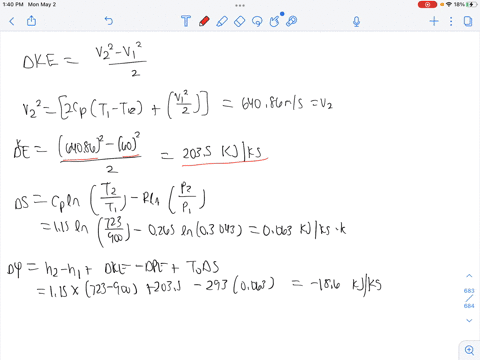

Hot combustion gases enter the nozzle of a turbojet engine at $230 \mathrm{kPa}, 627^{\circ} \mathrm{C}$, and $60 \mathrm{~m} / \mathrm{s}$ and exit at $70 \mathrm{kPa}$ and $450^{\circ} \mathrm{C}$. Assuming the nozzle to be adiabatic and the surroundings to be at $20^{\circ} \mathrm{C}$, determine $(a)$ the exit velocity and $(b)$ the decrease in the exergy of the gases. Take $k=1.3$ and $c_{p}=$ $1.15 \mathrm{~kJ} / \mathrm{kg} \cdot{ }^{\circ} \mathrm{C}$ for the combustion gases.

Key Concepts

Thermodynamic Property Relations

Understanding the relationships between specific heats, temperature, pressure, and energy content is fundamental in thermodynamics. These relations allow for the calculation of changes in enthalpy and the conversion of this energy into kinetic form. They are essential when applying the energy equation to determine both the exit velocity of the gas and the associated changes in exergy.

Exergy Analysis

Exergy represents the maximum useful work possible during a process that brings the system into equilibrium with a reference environment. In the context of a nozzle, exergy analysis quantifies the potential for work that is lost due to irreversibilities in the process. This involves comparing the energy at initial and final states relative to the environmental conditions, helping to identify efficiency losses in the energy conversion process.

Adiabatic Process

An adiabatic process is one in which there is no heat transfer between the system and its surroundings. In the analysis of nozzle flows, assuming adiabatic conditions simplifies the energy balance since all changes in energy can be attributed to internal work conversions rather than heat exchange with the environment.

Steady-Flow Energy Equation

This principle applies to devices where mass flows continuously through a control volume, such as a nozzle in a turbojet engine. It states that the sum of enthalpy, kinetic energy, and potential energy remains constant along the flow when no external work is done. In the context of a nozzle, the decrease in fluid enthalpy is converted into an increase in kinetic energy, which is used to determine the exit velocity of the flow.

Nozzle Flow Dynamics

In nozzle flow dynamics, the change in flow properties such as pressure and temperature is used to manipulate the velocity of the gas. The conversion of thermal energy (in the form of enthalpy) to kinetic energy is a key phenomenon. This concept is crucial for understanding how the gas accelerates as it passes through the converging-diverging geometry of a nozzle.
