Hot exhaust gases leaving an internal combustion engine at 400^∘ C and 150 kPa at a rate of 0.8

step 1 For this exercise, if m dot sub w is equal to 0 .8 times 684 .344 minus 631 .238 divided by 2792

Hot exhaust gases leaving an internal combustion engine at...

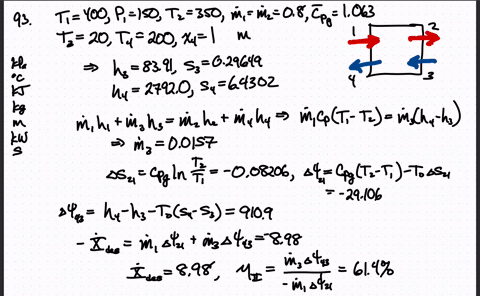

Hot exhaust gases leaving an internal combustion engine at $400^{\circ} \mathrm{C}$ and $150 \mathrm{kPa}$ at a rate of $0.8 \mathrm{~kg} / \mathrm{s}$ are to be used to produce saturated steam at $200^{\circ} \mathrm{C}$ in an insulated heat exchanger. Water enters the heat exchanger at the ambient temperature of $20^{\circ} \mathrm{C}$, and the exhaust gases leave the heat exchanger at $350^{\circ} \mathrm{C}$. Determine $(a)$ the rate of steam production, (b) the rate of exergy destruction in the heat exchanger, and $(c)$ the second-law efficiency of the heat exchanger.

Key Concepts

Heat Exchanger

A heat exchanger is a device designed to transfer thermal energy between two or more fluids at different temperatures. It operates by exchanging heat through a separating wall without mixing the fluids. Understanding the principles of heat exchangers is essential for analyzing thermal processes and ensuring efficient energy transfer, which is critical in many engineering systems including engine exhaust applications and steam generation.

Mass and Energy Balance

Mass and energy balance concepts form the cornerstone of thermodynamic analyses. They involve the conservation of mass and energy in a system, allowing engineers to quantify inputs and outputs such as heat, work, and mass flow rates. These balances are used to determine system performance, such as the rate of steam production, by accounting for heat gained and lost by the working fluids.

Exergy Analysis

Exergy analysis evaluates the quality and potential of energy to perform useful work. It distinguishes between energy that is available for work and energy that is lost due to irreversibilities. In processes where heat is transferred, exergy analysis helps identify the extent of energy degradation by tracking the exergy destruction, which is directly linked to the inefficiencies introduced by real-world processes.

Exergy Destruction and Irreversibility

Exergy destruction quantifies the loss of useful work potential in a system due to irreversible processes such as friction, unrestrained expansion, and heat transfer across finite temperature differences. This concept is essential for understanding and minimizing inefficiencies in thermal systems. By calculating exergy destruction, engineers can assess how far a real process deviates from the ideal reversible process.

Second Law Efficiency

Second law efficiency, or exergetic efficiency, measures how effectively a thermal system utilizes the available exergy. It is defined as the ratio of the useful exergy output to the exergy input, thereby providing insight into the performance of a process in terms of its irreversibility. This efficiency is critical for evaluating and improving the performance of equipment like heat exchangers, especially when the quality of energy—a key factor in advanced thermodynamic analyses—is taken into account.

Phase Change and Saturation

Phase change, particularly the generation of saturated steam from subcooled liquid water, is fundamentally important in many thermal systems. Understanding saturation conditions allows engineers to determine the required energy input to induce phase transition and to design systems that operate at the appropriate pressure and temperature conditions. This concept is integral in ensuring that the heat transferred in the exchanger leads to the desired state change of the working fluid.
