Household magnetic fields. Home circuit breakers typically...

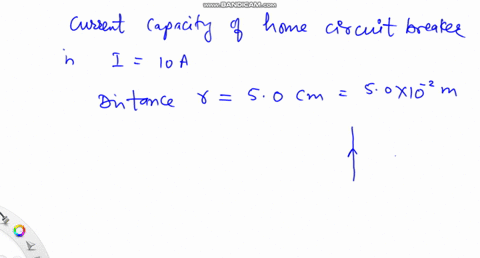

Household magnetic fields. Home circuit breakers typically have current capacities of around 10 A. How large a magnetic field would such a current produce 5.0 $\mathrm{cm}$ from a long- wire's center? How does this field compare with the strength of the earth's magnetic field?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Magnetic Field from a Long Straight Conductor

This concept deals with the magnetic field produced around a conductor through which an electric current flows. According to the Biot–Savart Law, a steady current produces a magnetic field whose magnitude decreases with increasing distance from the wire and whose direction can be determined by the right-hand rule. For a long, straight wire, the magnetic field at a point external to the wire is directly proportional to the current and inversely proportional to the distance from the conductor.

Earth's Magnetic Field

Earth’s magnetic field is the magnetic field that surrounds our planet, generated by the motion of molten iron alloys in its outer core. Its strength, which is typically on the order of tens of microteslas, serves as a benchmark for comparing other magnetic fields. Understanding Earth's magnetic field is essential not only for navigation but also for contextualizing and comparing the magnitudes of other magnetic fields, such as those produced by household electrical currents.
