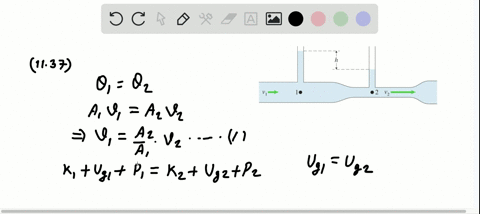

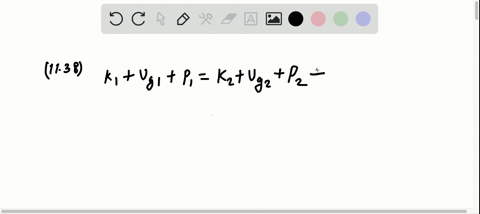

How can you use the venturi meter system (see Problem 14.28 ) to determine whether viscous fluid

step 1 Hello everyone this is the problem based on ventrometer system we have to determine how to find

How can you use the venturi meter system (see Problem 14.28...

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Viscous Effects and Head Loss

In real fluids, viscosity introduces energy losses, known as head loss, which are not predicted by Bernoulli’s ideal equation. These viscous losses result in additional pressure drops when compared to a nonviscous fluid at the same flow speed. Thus, a viscous fluid may require a higher pressure difference to maintain the same speed, a fact that can be detected by comparing the measured pressure differences against those expected from ideal flow conditions.

Bernoulli’s Principle

Bernoulli’s principle relates the pressure, velocity, and height along a streamline of an ideal fluid under steady, inviscid flow conditions. In the context of a Venturi meter, it explains how pressure decreases as the fluid speed increases in the constricted section, establishing the baseline against which real-world deviations (such as losses due to viscosity) are measured.

Venturi Meter

A Venturi meter is an instrument used to measure the flow rate by taking advantage of the pressure differences created by fluid acceleration as it passes through a constricted section of a pipe. The system works on the principle of converting pressure energy into kinetic energy, allowing the determination of flow characteristics by correlating speed with observed pressure drops.
