How many time constants must elapse before a capacitor in a series RC circuit is charged to 80.0

step 1 So in this problem, in the case of charging of capacitor, we want to find out the number of time

How many time constants must elapse before a capacitor in a...

Key Concepts

RC Time Constant

The RC time constant, often represented by the symbol ?, is the product of the resistance (R) and the capacitance (C) in a circuit. It characterizes the rate at which the capacitor charges or discharges, and it represents the amount of time required for the voltage (or charge) to rise to about 63.2% of its final value in a charging circuit.

Exponential Charging of a Capacitor

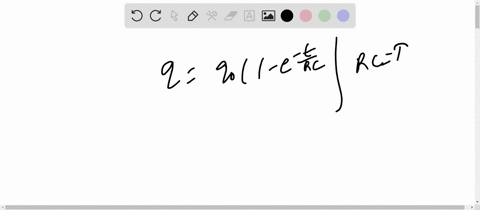

When a capacitor charges in an RC circuit, its voltage (or charge) increases following an exponential curve. This behavior is described by an equation where the capacitor approaches its equilibrium value asymptotically. The equation Q(t) = Q_final*(1 - exp(-t/?)) demonstrates how the charge builds over time, highlighting the significance of the exponential term in the transient response.

Transient Analysis

Transient analysis involves studying the behavior of circuits as they respond to changes from one steady state to another. In an RC circuit, this analysis focuses on the period immediately after a change, such as the application of a voltage supply, to understand how quickly the capacitor charges and how long it takes to reach a specific percentage of its equilibrium value.

Logarithmic Calculation for Time Determination

Determining the time required for a capacitor to charge to a certain percentage of its equilibrium value involves taking the natural logarithm of expressions derived from the exponential charging formula. This step isolates the time variable and, when expressed in terms of the time constant ?, provides insight into how many time constants are needed to reach the desired charge level.
