(I) Calculate the mass m needed in order to suspend the leg...

(I) Calculate the mass $m$ needed in order to suspend the leg shown in Fig. 9-47. Assume the leg (with cast) has a mass of 15.0 kg, and its $_{CG}$ is 35.0 cm from the hip joint; the cord holding the sling is 78.0 cm from the hip joint.
FIGURE 9–47 Problem 2. (Figure can't copy)

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Static Equilibrium

Static equilibrium is the state where an object is at rest and the sum of all forces and torques acting on it is zero, ensuring there is no acceleration. In the context of this problem, the forces due to the weight of the leg and the tension in the cord must balance each other so that the leg remains suspended without rotation or translation.

Torque (Moment) Balance

Torque, or moment, is the rotational effect of a force applied at a distance from a pivot point. In problems like this one, the weight of the leg creates a torque about the hip joint because its center of gravity is offset from the joint. The mass attached by the cord creates a counteracting torque, and setting these torques equal allows one to solve for the unknown mass required to maintain equilibrium.

Center of Gravity

The center of gravity represents the point at which an object's weight is considered to be concentrated. In this problem, the leg’s center of gravity is crucial because it determines the point at which the gravitational force acts, influencing the magnitude of the torque generated about the hip joint.

Transcript

00:01 Once again, welcome to a new problem.

00:04 This time, we have a leg that's hanging with a cast.

00:11 Maybe someone kind of messed up their leg playing football or something like that.

00:18 I guess i need to change this part a little bit.

00:21 But it's a leg.

00:23 This is the knee.

00:24 This is the leg with a cast, something like that.

00:29 And it's all covered.

00:35 The leg itself is hanging from a position, so it's being held by a piece of cloth, triangular piece of cloth, like this, and there's a pulley system that's responsible for supporting the leg.

00:51 We do have a weight here with the mass called m.

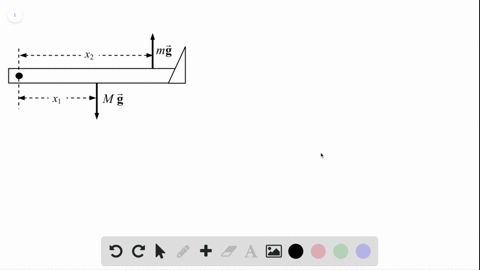

00:59 The center of gravity of the leg acts somewhere in the middle.

01:04 And it's going to be mg or mg the weight will be mgl.

01:15 So we'll say mlg, sorry, that's the weight of the leg.

01:21 This is the pulley system, it's holding up the leg itself and we see right here we do have a pulley system, functional pulley system that's supporting the weight and the leg itself.

01:42 This is the heap joint.

01:47 That's the heap joint.

01:52 And so we want to find out what that mass is.

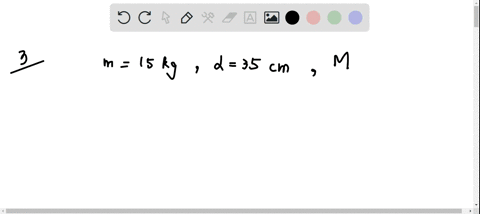

01:59 The mass, so this is the information that's given...
