If the beam is made from wood having an allowable shear stress $\tau_{\text {allow }}=400$ psi, determine the maximum magnitude of $\mathbf{P}$. Set $d=4$ in.
Step 1

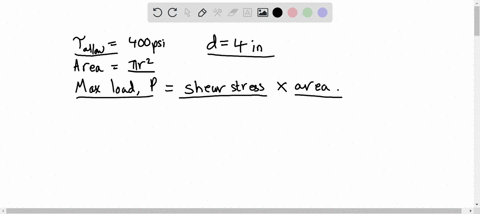

Since the problem does not provide the width, we will assume it to be a square cross-section, so $b = d = 4$ in. Now, we can calculate the section modulus: $S = \frac{4 \times 4^2}{6} = \frac{64}{6} = 10.67$ in^3 Show more…
Show all steps
Your feedback will help us improve your experience
Chai Santi and 61 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The beam is constructed from three boards. Determine the maximum shear $V$ that it can support if the allowable shear stress for the wood is $\tau_{\text {allow }}=400$ psi. What is the maximum allowable spacing $s$ of the nails if each nail can resist a shear force of $400 \mathrm{lb} ?$
The beam is constructed from three boards. Determine the maximum loads $P$ that it can support if the allowable shear stress for the wood is $\tau_{\text {allow }}=400$ psi. What is the maximum allowable spacing $s$ of the nails used to hold the top and bottom flanges to the web if each nail can resist a shear force of $400 \mathrm{lb} ?$
