Question
If the emitter current of a transistor is $8 \mathrm{~mA}$ and $I_{B}$ is $1 / 100$ of $I_{C}$, determine the levels of $I_{C}$ and $I_{B}$.
Step 1

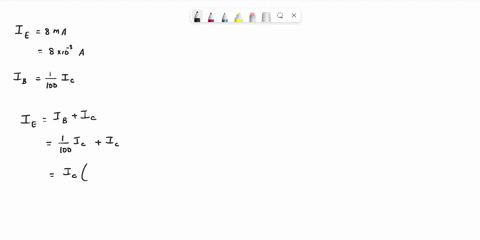

So, we can write the equation: I_E = I_B + I_C We are given that I_E = 8 mA and I_B = 1/100 * I_C. We can substitute the value of I_B in terms of I_C into the equation: 8 mA = (1/100 * I_C) + I_C Now, we can solve for I_C: 8 mA = (1/100 * I_C) + I_C 8 mA = Show more…
Show all steps
Your feedback will help us improve your experience
Varsha Aggarwal and 65 other educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
If the emitter current of a transistor is 8 mA and IB is 1/100 of IC, determine the levels of IC and IB
A transistor has a base current of $1 \mathrm{~mA}$ and emitter current $90 \mathrm{~mA}$. The collector current will be (a) $90 \mu \mathrm{A}$ (b) $1 \mathrm{~mA}$ (c) $89 \mathrm{~mA}$ (d) $91 \mathrm{~mA}$
Electronic Devices
Round 1
In NPN transistor the collector current is $10 \mathrm{~mA}$. If $90 \%$ of electrons emitted reach the collector, then (A) emitter current will be $9 \mathrm{~mA}$. (B) emitter current will be $11.1 \mathrm{~mA}$. (C) base current will be $0.1 \mathrm{~mA}$. (D) base current will be $0.01 \mathrm{~mA}$.
