Question

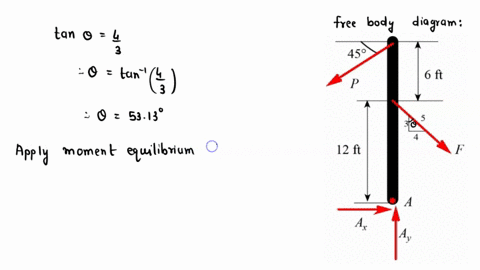

If the man at $B$ exerts a force of $P=30$ lb on his rope, determine the magnitude of the force $\mathbf{F}$ the man at $C$ must exert to prevent the pole from rotating, i.e., so the resultant moment about $A$ of both forces is zero.
Step 1
The force is applied at an angle of $45^\circ$ to the horizontal. The distance from $A$ to $B$ is $4$ ft. The moment of this force about $A$ is given by $M_{AB} = P \cdot AB \cdot \sin(45^\circ)$. Show more…
Show all steps
Your feedback will help us improve your experience
Khoobchandra Agrawal and 67 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

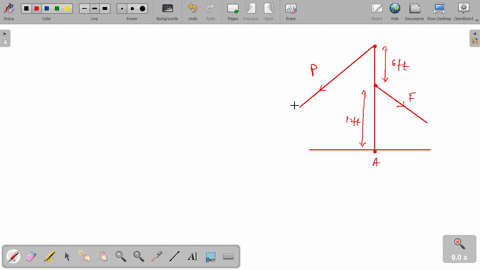

If the man at B exerts a force of P = 30 lb on his rope, determine the magnitude of the force F the man at C must exert to prevent the pole from rotating, i.e, so the resultant moment about A of both forces is zero.

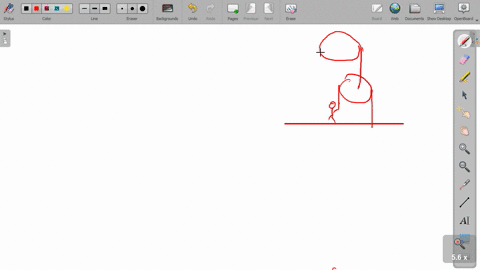

In the Fig. $3.72$, the force with which the man should pull the rope to hold the plank in position is $F$. If weight of the man is $60 \mathrm{kgf}$, the plank and pulleys have negligible masses, then $\left(g=10 \mathrm{~m} / \mathrm{s}^{2}\right)$ (A) $F=150 \mathrm{~N}$ (B) $F=300 \mathrm{~N}$ (C) $F=600 \mathrm{~N}$ (D) $F=1200 \mathrm{~N}$
