If the resultant force is required to act at the center of...

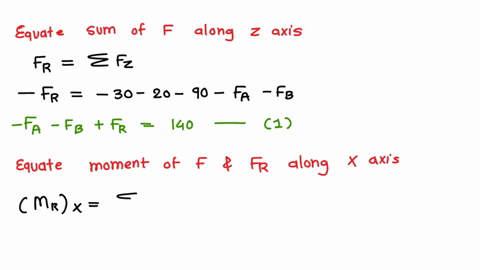

If the resultant force is required to act at the center of the slab, determine the magnitude of the column loadings $\mathbf{F}_{A}$ and $\mathbf{F}_{B}$ and the magnitude of the resultant force.

Key Concepts

Static Equilibrium

This concept refers to the state in which all forces and moments acting on a body are balanced, resulting in zero net force and zero net moment. In structural problems, ensuring static equilibrium is fundamental because it confirms that the structure will not accelerate or rotate unexpectedly under the applied loads.

Moment Equilibrium

Moment equilibrium deals with the balancing of moments (or torques) about a specific point or axis. In problems where the resultant force is required to act at a particular location, such as the center of a slab, ensuring moment equilibrium is critical to determine the correct distribution of forces that brings the moment contributions into balance.

Resultant Force

The resultant force is the single force that has the same effect on a body as the vector sum of all individual forces acting on it. Determining the magnitude and line of action of the resultant force is important in structural engineering to simplify the analysis, ensuring that the combined effect of several forces is accurately represented and applied at the intended point.

Load Distribution

Load distribution involves dividing applied loads among structural elements, such as columns or beams, so that the desired performance criteria are met. Proper load distribution is essential in ensuring that each component of a structure carries an appropriate share of the overall force, maintaining both equilibrium and the integrity of the structure by avoiding overload on any single element.
