Question
If $v_{c}(t=2 s)=10 \mathrm{V}$ in the circuit in Fig. $\mathrm{P} 6.17$, find the energy stored in the capacitor and the power supplied by the source at $t=6 \mathrm{s}$
Step 1
The potential across the capacitor is given by $v_{c}(t)=v_{0}+\frac{v_{m}}{RC}t$. Given that $v_{c}(t=2s)=10V$, the capacitance $C=0.5F$, and $t=6s$, we can solve for the potential across the capacitor at $t=6s$ to get $v_{c}(t=6s)=26V$. Show more…
Show all steps
Your feedback will help us improve your experience
Khoobchandra Agrawal and 58 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

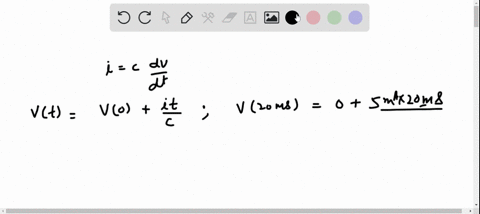

Find the voltage, power, and stored energy at $t=20 \mathrm{ms}$ for the capacitance in the circuit of Figure $\mathbf{P} 3.14$
Find $v_{C}, i_{L},$ and the energy stored in the capacitor and inductor in the circuit of Fig. 6.65 under dc conditions.
We know that the capacitor shown in Figure $\mathrm{P} 4.11$ is charged to a voltage of $10 \mathrm{V}$ prior to $t=0 .$ a. Find expressions for the voltage across the capacitor $v_{C}(t)$ and the voltage across the resistor $v_{R}(t)$ for all time. b. Find an expression for the power delivered to the resistor. c. Integrate the power from $t=0$ to $t=\infty$ to find the energy delivered. Show that the energy delivered to the resistor is equal to the energy stored in the capacitor prior to $t=0$.
