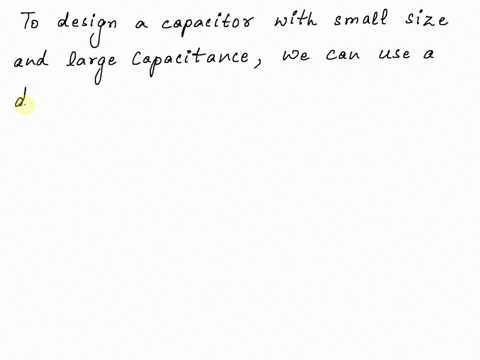

If you were asked to design a small capacitor with high capacitance, what factors would be impor

step 1 So if we want to design a capacitor that has a high capacitance, what we need to do is think abo

If you were asked to design a small capacitor with high...

Key Concepts

Capacitance Fundamentals

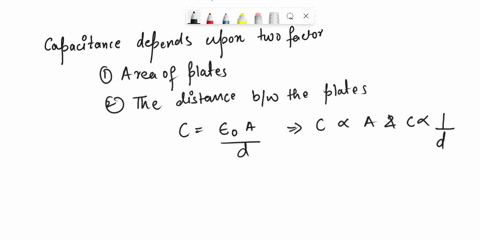

The design of a capacitor revolves around the formula C = ?A/d, where capacitance (C) is determined by the dielectric permittivity (?), the surface area of the plates (A), and the distance between them (d). For a small capacitor with high capacitance, increasing ? and A while minimizing d is crucial.

Dielectric Material Selection

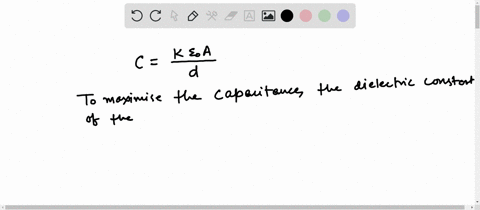

Choosing a dielectric material with a high dielectric constant is essential because it allows a greater amount of charge to be stored without requiring an increase in size. The dielectric also must have strong insulating properties and be resistant to breakdown under the capacitor's operating conditions.

Geometrical Optimization

The geometry of the capacitor greatly influences its performance. Maximizing the effective plate area in a limited space, possibly through techniques like multi-layer stacking, and minimizing the separation between plates are key strategies to achieve high capacitance in a compact design.

Electrical and Thermal Reliability

In designing a high-capacitance, small-sized capacitor, it is important to ensure that the reduction in plate separation does not compromise the breakdown voltage or lead to excessive leakage currents. Balancing the physical dimensions and material properties is critical to maintaining both electrical performance and reliability under operating conditions.
