(II) A concave mirror has focal length f . When an object is...

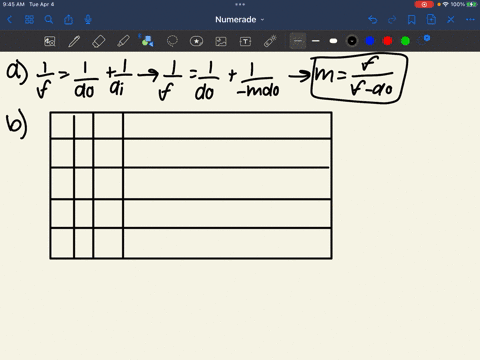

(II) A concave mirror has focal length $f .$ When an object is placed a distance $d_{\mathrm{o}}>f$ from this mirror, a real image with magnification $m$ is formed. $(a)$ Show that $m=f /\left(f-d_{\mathrm{o}}\right)$ (b) Sketch $m$ vs. $d_{0}$ over the range $f < d_{\mathrm{o}} < +\infty$ where $f=0.45 \mathrm{m} .(c)$ For what value of $d_{\mathrm{o}}$ will the real image have the same (lateral) size as the object? $(d)$ To obtain a real image that is much larger than the object, in what general region should the object be placed relative to the mirror?

Key Concepts

Mirror Equation

The mirror equation, expressed as 1/d? + 1/d? = 1/f, is fundamental in geometrical optics for determining the relationships among the object distance (d?), the image distance (d?), and the focal length (f) of a mirror. This equation incorporates the sign conventions that distinguish real images from virtual ones and is essential for understanding how the positioning of an object relative to a concave mirror determines the location and nature of its image.

Magnification

Magnification in mirror systems is defined as the ratio of the image size to the object size and is mathematically given by m = -d?/d?. This concept not only provides a quantitative measure of the size change between the object and the image but also indicates image orientation (erect or inverted) through its sign. In the context of concave mirrors producing real images, the derived formula m = f/(f - d?) further relates magnification directly to the object distance and focal length, illustrating how image size changes as the object moves relative to the mirror.

Graphical Analysis of Magnification

Graphical analysis involves sketching the relationship between magnification and object distance to gain insight into how changes in object placement affect the size of the image. Plotting m versus d? over a range provides visual cues about regions where the image is magnified or diminished, and highlights limits, such as the divergence of the function as the object distance approaches the focal length.

Image Formation by Concave Mirrors

The formation of images by concave mirrors is a key concept in optics where the position of the object relative to the focal point determines the type of image produced. When the object is placed beyond the focal length, a real and inverted image is formed, and by adjusting the object's distance, one can achieve specific image properties such as equal size to the object or significant magnification. Understanding these principles is crucial in designing optical systems where control over image characteristics is required.
