(II) If 26.0 V is applied across the whole network of Fig. 19-52, calculate the voltage across e

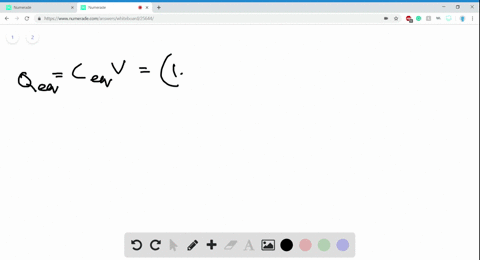

step 1 So here we're looking for the voltage across each capacitor. And first, let's take the 2 micro -

(II) If 26.0 V is applied across the whole network of Fig....

Key Concepts

Capacitors in Series

In a series connection, all of the capacitors share the same charge, although the voltage across each capacitor may be different. The total voltage applied to the series network is distributed among the capacitors in a way that the voltage drop across each capacitor is inversely proportional to its capacitance. Understanding this behavior is crucial when analyzing circuits because it dictates how the applied voltage is partitioned and how individual components operate within the network.

Equivalent Capacitance

Calculating the equivalent capacitance of a combined network simplifies analysis by replacing several capacitors with a single, equivalent capacitor that has the same overall effect on the circuit. For capacitors in series, the reciprocal of the equivalent capacitance is the sum of the reciprocals of the individual capacitances. This concept is essential because it allows one to determine the total charge stored in the network when a voltage is applied, and subsequently, to calculate the voltage across each individual capacitor.

Voltage Division in Capacitor Networks

Voltage division in capacitor networks refers to the process of determining how an applied voltage is split among capacitors that are connected in series. Because each capacitor in series has the same charge, the voltage across each capacitor can be found by dividing the product of the common charge and the reciprocal of its capacitance by the common denominator, which is related to the equivalent capacitance of the network. This concept is directly analogous to the voltage divider rule used in resistor circuits, but with the important distinction that capacitance values influence voltage division inversely.

Charge Conservation in Capacitor Circuits

In any capacitor network, the principle of charge conservation holds, meaning that the same amount of charge must reside on capacitors connected in series. This fundamental idea is key to analyzing and solving capacitor networks because it provides a constraint that links the individual capacitor voltages to the overall charge stored by the system. Using charge conservation simplifies the process of determining individual voltages once the total equivalent charge is known.
