(II) Show, using a ray diagram, that the magnification m of...

(II) Show, using a ray diagram, that the magnification $m$ of a
convex mirror is $m=-d_{1} / d_{0},$ just as for a concave mirror.

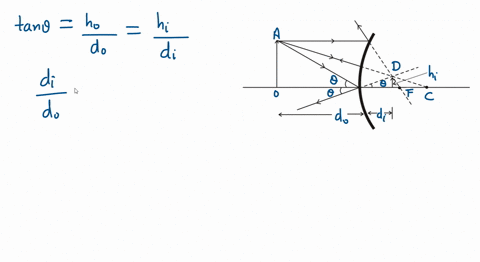

$[$ Hint: Consider a ray from the top of the object that reflects
at the center of the mirror.

Key Concepts

Ray Diagram

A ray diagram is a schematic representation used in optics to trace the paths of light rays as they interact with optical elements like mirrors. By drawing specific rays from an object, such as those passing through the center of a mirror, one can predict the formation and location of an image. This tool is essential for visualizing the behavior of light and understanding how images are formed by different types of mirrors.

Magnification

Magnification in the context of mirrors is defined as the ratio of the size of the image to the size of the object, as well as the ratio of the image distance to the object distance. It indicates how much larger or smaller the image appears compared to the object. A negative magnification indicates that the image is inverted relative to the object, which is a common characteristic in mirror systems.

Sign Conventions in Mirror Formulas

In mirror formulas, sign conventions are critical for correctly determining the orientation and position of images. Distances measured against the direction of incoming light (typically the object distances) have opposite signs compared to those along the direction of light propagation. This sign system helps in deriving relationships like the magnification equation and image location equations, ensuring consistency across different mirror types.

Properties of Convex Mirrors

Convex mirrors are curved outward and cause parallel incoming light rays to diverge. Despite diverging rays, these mirrors form virtual, upright, and reduced images which are nonetheless useful in various applications such as rear-view mirrors. The derivation of magnification in convex mirrors follows similar principles as for concave mirrors, particularly when using ray diagrams and applying appropriate sign conventions.
