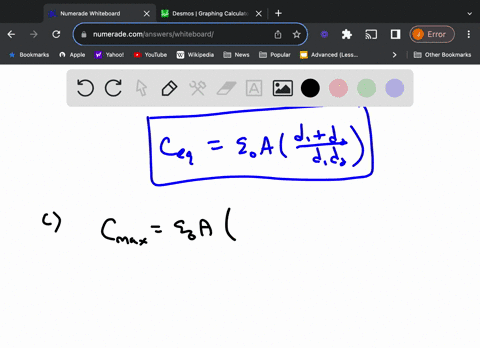

(II) Three conducting plates, each of area $A,$ are connected as shown in Fig. $19-54$ . ( $a$ ) Are the two capacitors formed connected in series or in parallel? (b) Determine $C$ as a function of $d_{1}, d_{2},$ and $A$ . Assume $d_{1}+d_{2}$ is much less than the dimensions of the plates.

Key Concepts

Electrostatic Assumptions and Edge Effects

In analyzing capacitor configurations, assumptions such as negligible edge effects are made when the separation between the plates is much smaller than their dimensions. This allows the use of ideal formulas for capacitance, ignoring fringing fields and other non-ideal phenomena. Such idealizations simplify the problem and are essential for a clear understanding of the underlying principles.

Equivalent Capacitance Calculation

This concept involves combining multiple capacitive components into a single capacitance that has equivalent electrical behavior. Whether the capacitors are arranged in series or parallel, the method of calculating the overall capacitance is essential in circuit analysis. In problems like this, determining how the distances between plates contribute to capacitance in a series configuration is crucial.

Parallel Plate Capacitor

This is a basic capacitor configuration consisting of two conductive plates separated by an insulating material. Its capacitance is given by a formula that depends on the area of the plates, the separation distance between them, and the permittivity of the insulating material. This fundamental model underpins more complex arrangements, including the one in the question.

Capacitors in Series

When capacitors are connected such that the same charge passes through each, they are said to be in series. The overall or equivalent capacitance in a series configuration is found through the reciprocal formula, where the inverse of the total capacitance equals the sum of the inverses of the individual capacitances. This concept is key in analyzing configurations where multiple capacitors are connected end-to-end, affecting the net storage capacity compared to a single capacitor.
