In a 250-turn automobile alternator, the magnetic flux in...

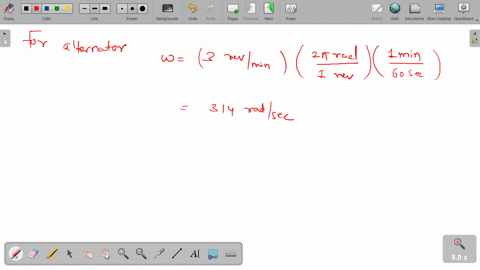

In a 250-turn automobile alternator, the magnetic flux in each turn is $\Phi_{B}=\left(2.50 \times 10^{-4} \mathrm{~T} \cdot \mathrm{m}^{2}\right) \cos (\omega t)$, where $\omega$ is the angular speed of the alternator. The alternator is geared to rotate three times for each engine revolution. When the engine is running at an angular speed of 1000 rev/min, determine (a) the induced emf in the alternator as a function of time and (b) the maximum emf in the alternator.

Key Concepts

Angular Speed and Frequency Conversion

Rotation rates are often provided in units like revolutions per minute (rev/min), but electromagnetic analysis typically requires angular speed in radians per second. Converting between these units, while also accounting for gear ratios that modify the effective speed of the rotating magnetic element, is essential for accurately determining the frequency of flux variation and the resulting induced emf.

Multi-turn Coil Effects

In systems where a coil has multiple turns, the total induced emf is the sum of the contributions from each individual turn. This cumulative effect significantly enhances the overall induced voltage compared to a single loop. Understanding the role of multi-turn coils is crucial when analyzing how devices such as alternators and transformers amplify induced emf through repeated loops of wire.

Faraday's Law of Electromagnetic Induction

This fundamental principle states that a change in magnetic flux through a circuit induces an electromotive force (emf) in that circuit. The law quantitatively relates the rate of change of the magnetic flux to the magnitude of the induced emf, forming the basis for many electrical devices such as generators and transformers. It is essential for understanding how varying magnetic fields can be converted into electrical energy.

Magnetic Flux

Magnetic flux represents the total magnetic field passing perpendicularly through a given area. It is a measure of the strength and extent of a magnetic field over a region and is central to the analysis of electromagnetic systems. Variations in magnetic flux are what drive the process of induction, linking the spatial configuration of magnetic fields with the operation of electrical machinery.
